281Q-inch Strip Module Specification Sheet XST

PRODUCT CATALOG

TXHCI PRODUCT

HMI panels, Android all-in-one terminals, industrial monitors, and more — designed for intelligent connectivity.

This specification applies to 28.1 ” diagonal module screens, ' 281Q ' strip screens.

The display module is an irregularly shaped, unconventional advertising device design.

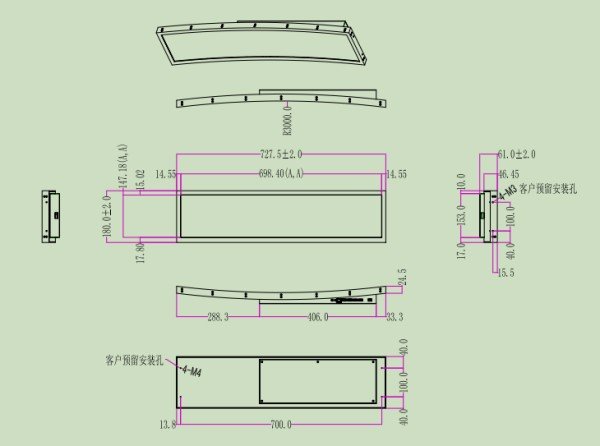

Glass Properties

2.1 Electrical Parameter Table for LCD Glass

No	Symbol	Description	No	Symbol	Description
1	NC	No Connection(Note 4)	27	NC	No connection
2	NC	No Connection(Note 4)	28	R2AN	SECONDLVDS Receiver Signal(A-)
3	NC	No Connection(Note 4)	29	R2AP	SECONDLVDS Receiver Sianal(A+)
4	NC	No Connection(Note 4)	30	R2BN	SECOND LVDS Receiver Sianal(B-)
5	NC	No Connection(Note 4)	31	R2BP	SECONDLVDS Receiver Sianal(B+)
6	NC	No Connection(Note 4)	32	R2CN	SECOND LVDS Receiver Sianal(C-)
7	LVDS Select	H'=JEIDA,L'or NC=VESA	33	R2CP	SECONDLVDS Receiver Sianal(C+)
8	NC	No Connection(Note 4)	34	GND	Ground
9	NC	No Connection(Note 4)	35	R2CLKN	SECONDLVDS Receiver Clock Sianal(-)
10	NC	No Connection(Note 4)	36	R2CLKP	SECONDLVDS Receiver Clock Sianal(+)
11	GND	Ground	37	GND	Ground
12	R1AN	FIRSTLVDS Receiver Sianal (A-)	38	R2DN	SECONDLVDS Receiver Sianal(D-)
13	R1AP	FIRSTLVDS Receiver Sianal (A+)	39	R2DP	SECONDLVDS Receiver Sianal(D+)
14	R1BN	FIRSTLVDS Receiver Signal(B-)	40	NC	No connection
15	R1BP	FIRSTLVDS Receiver Sianal (B+)	41	NC	No connection
16	R1CN	FIRSTLVDS Receiver Sianal (C-)	42	NC or GND	No Connection or Ground
17	R1CP	FIRSTLVDS Receiver Signal(C+)	43	NC or GND	No Connection or Ground
18	GND	Ground	44	GND	Ground(Note 5)
19	R1CLKN	FIRSTLVDS Receiver Clock Sianal(-	45	GND	Ground
20	R1CLKP	FIRSTLVDS Receiver Clock Signal(+)	46	GND	Ground
21	GND	Ground	47	NC	No connection
22	R1DN	FIRSTLVDS Receiver Sianal (D-)	48	VLCD	Power Supply+12.0V
23	R1DP	FIRSTLVDS Receiver Signal (D+)	49	VLCD	Power Supply+12.0V
24	NC	No connection	50	VLCD	Power Supply+12.0V
25	NC	No connection	51	VLCD	Power Supply+12.0V
26	NC or GND	No Connection or Ground		-

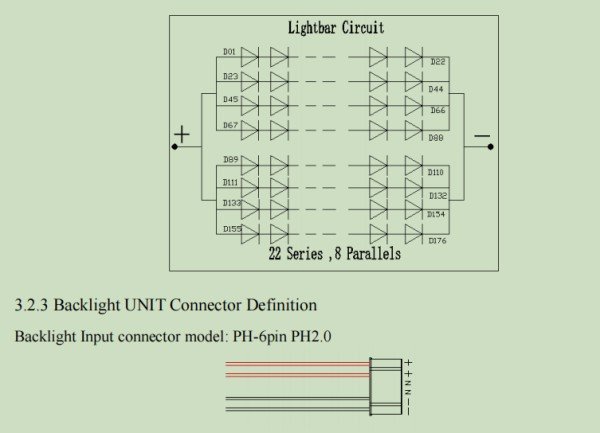

2.2 Backlight Circuit Schematic

Barcode Label

3.1 Module Barcode

Model No:

2 Product Code

A---open cell Manufacturer（A—AUO，C—CMO,T—CPT,E—BOE,P—IPS,S—SHARP,L--LG）

B--Backlight Type(D—DLED,E—ELED)

C—Brightness Code(H—High Brightness,N—NormalBrightness,L—Low Brightness)

DEF—product Size(35”)

GH — Year (18-2018) IJ — WEEK(45-45) K — LINE(1-Line1)

LMNOPQ — Serial Code(000000-999999)

3 Open cell Model:LC860EQY-FJA3

4 DOUBLE LIN LTD.MADE IN CHINA

3.2 Caution Label
