233C Long Strip All-in-One Printer ZLS-972

Features:

Multiple specifications available, customizable, LED LCD screen, high-definition display

Add To Cart Inquiry

Product Details

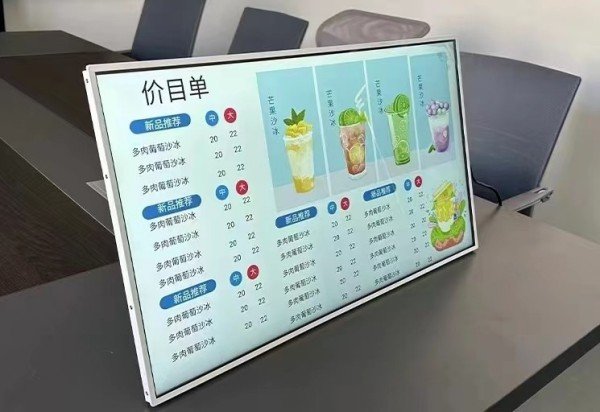

233C long strip screen is a new generation of advertising display screen, featuring high-definition display and touch operation. It utilizes a multimedia LCD driver board with a mature solution and stable hardware and software. It supports LVDS dot-matrix display and HDMI high-definition output, contributing to excellent image quality at high resolutions and providing a visually pleasing experience. It features a standard Android keyboard with optional third-party input methods, supports multiple languages, and is perfectly compatible with mainstream industry software . Widely used in the advertising industry, it is the preferred display device for elevator advertising, queue management displays, restaurant menus , and signage for government agencies, banks, and other public institutions!

Overall Functionality

Standard Android keyboard, with optional third-party input methods.

Supports up to 1080P decoding and various LVDS signal displays; HDMI supports up to 3840 * 2160 P/60Hz.

Built-in real-time clock powered by battery, supports timed power on/off.

Supports PAL/NTSC/SECAM and 480i/576i video formats.

Supports external serial port device modules (expanded sensors or barcode/QR code scanners, printers, card readers, etc.).

TF card expansion, supports up to 64GB

OSD supports Chinese and English languages, and can also support multiple languages.

Supports Ethernet 10/100Mbps, and supports 2.4G WIFI and 802.11b/g/n protocols.

Perfectly supports mainstream industry-released software and industry application software; install and use immediately.

Supports browsing various image formats such as JPG, BMP, PNG, and GIF, and supports switching between portrait and landscape modes for videos, images, and text, with rotation options of 90°, 180°, and 270°.

Port configuration: USB OTG, USB HOST, RJ45, Micro SD, LINE OUT, HDMI OU, DC2.0 IN

Supports OTA remote USB, TF, PC and network upgrades

The customer is responsible for obtaining the license details specified in this specification.

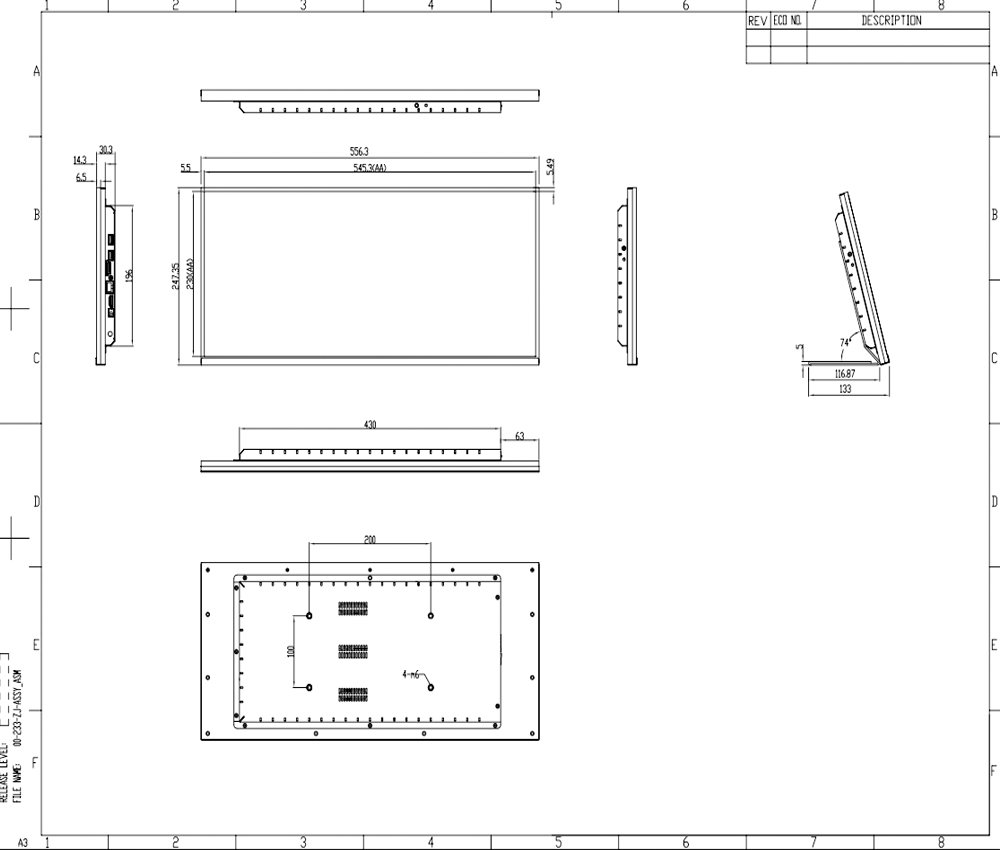

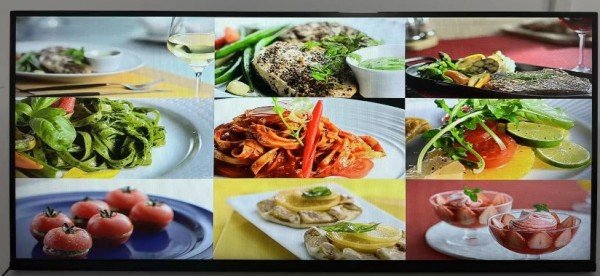

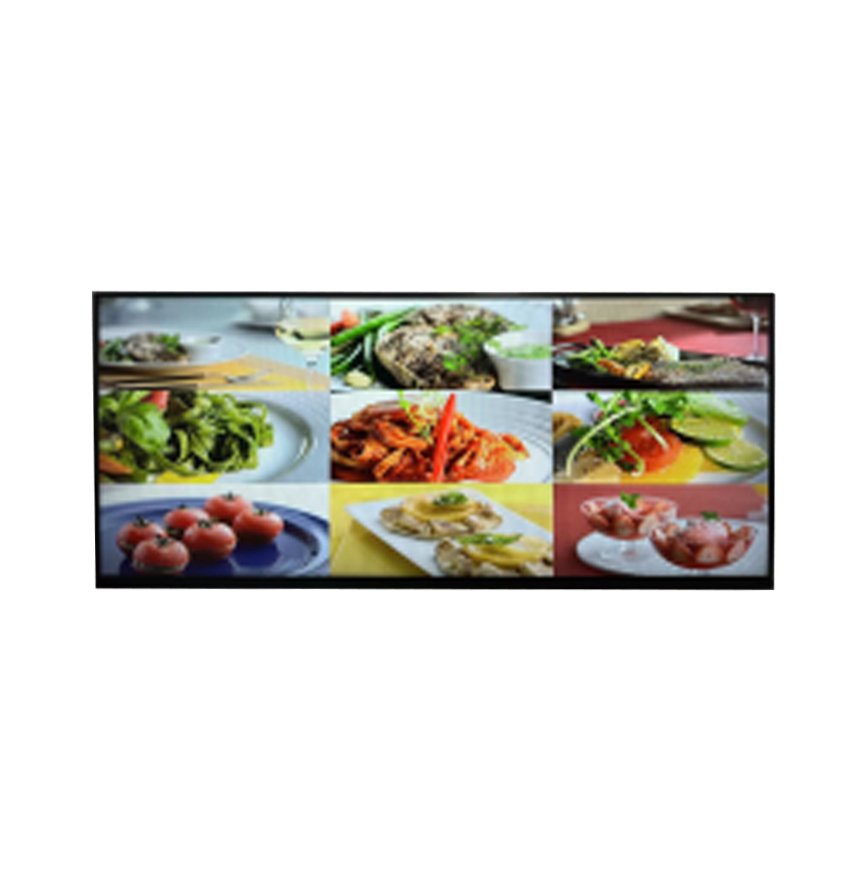

Front view

Specifications

Overall characteristics

Overall dimensions	556.3247.330.3 (mm)
Display size	545.3*230 mm
Video format	Supports MPEG1/2, MPEG4, SP/ASP, XVID, VP8/6, AVS/AVS+, H.264 BP/MP/HP, H.263/WMV, WMV7, WMV8, etc.
audio format	WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, MP3, etc.
Speaker specifications	8 Ω 3W Advertising Machine Speaker
Port configuration	USB OTG: 1 set
	USB HOST: 1 set
	RJ45: 1 set
	Micro SD: 1 set
	LINE OUT: 1 set
	HDMI OUT: 1 set
	DC2.0 IN: 1 set
Communication settings	Ethernet 10/100Mbps, 2.4G WiFi, 802.11 b/g/n protocol, external antenna.
Support for information transmission	Hefeng, Dumei, Weikan, Xingji, Yixinfa, Chihua, Shanhu, and other information providers
Maximum power consumption	≤ 30 W
standby power	≤0.5W
Input power	DC12 V
Package	1 piece/box (Length: Width: Height:)
weight	Net weight (KG) Gross weight (KG)

System parameters

processor	T972 quad-core A55 processor with a maximum clock speed of 1.9GHz , and a Mali- G31 quad-core GPU.
system	Android 9.0
Memory	DDR3 2 G
storage space	32 GB

Display parameters

Screen size	23.3 inches
Display type	LED LCD screen
Physical resolution	2560*1080 (FHD)
Display color	8- bit , 16.7M colors
refresh rate	60Hz
brightness	300 cd/㎡ (500/700 optional)
Contrast	1200:1
View range	89/89/89/89(U/D/L/R)
Backlight lifespan	30,000 hours
