860C Elongated all-in-one Monitor (original BOE)

Features:

Multiple specifications available, customizable, LED LCD screen, high-definition display

Add To Cart Inquiry

Product Details

860C elongated display screen is a new generation of advertising display screen, featuring high-definition display and touch operation. It utilizes a multimedia LCD driver board with a mature solution and stable hardware and software. Supporting V-BY-ONE dot-matrix display and HDMI high-definition input , it helps display excellent image quality at high resolution, providing a visually pleasing experience. Widely used in the advertising industry, it is the preferred display equipment for advertising display screens, intelligent self-service terminals, O2O smart devices, bus/subway vehicle-mounted announcement systems, and government/commercial signage!

Overall Functionality

CHIPSET

(Main chip)

TV6188 chip

Scope of application

(Scope of application)

Advertising Display

OSD LANGUAGE

(OSD language)

Chinese, English

PANEL (panel)

Panel Type

(Panel type)

led

Interface

(interface)

LVDS/V-BY-ONE

MAX Resolution

(Maximum resolution)

3840*2160

Interface of controlling

(Control interface)

Video input

HDMI

480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4Kx2K

AUDIO OUTPUT

(Audio output)

Max Output power

(Maximum output power)

2×5W(8Ω) THD+N<10%@1KHz

(Power Supply: 12V, Audio Input: 0.5VRMS)

POWER (Power Supply)

Requirement

(Power input)

12V 5A

To Panel

(Power supply to the screen)

12V

Management

(Power Management)

Low power consumption mode, standby < 0.5W(Onlyboard)

Specialized power consumption < 1W (motherboard only)

Comb filtering function

Deinterleaving function

Noise cancellation function

YES

USB FUNCTION

Multimedia, software upgrade

Refer to 7.1 for details.

Special features

Supports switching of strip screen resolution via USB, supports HDMI peer-to-peer, and supports OSD.

Specifications

Overall characteristics

Overall dimensions	2171359.555 (mm)
Display size	2151.48*338.7 mm
Wall-mounted dimensions	600*200(mm)
Speaker specifications	8Ω- 10W cabinet speaker
Port configuration	USB 2.0 : 2 sets
	Headphone input: 1 group
	DP interface: 1 set
	HDMI IN : 2 sets
	DC 2.0 IN : 1 set
Maximum power consumption	≤ 230 W
standby power	≤ 2 W
Input power	AC 100-- 2 3 0V
Package	1 PCS/box
weight	Net weight: Gross weight:

Display parameters

Screen size	860 inches
Display type	LED LCD screen
Physical resolution	3840 (H) × 600 (V) (FHD)
Display color	8- bit , 16.7M colors
refresh rate	60Hz
brightness	1000 cd/㎡
Contrast	1200:1
View range	89/89/89/89(U/D/L/R)
Backlight lifespan	30,000 hours
Surface treatment	Anti Glare
Surface hardness	2H
LCD glass power supply	12V

Product Appearance

Product Dimensions

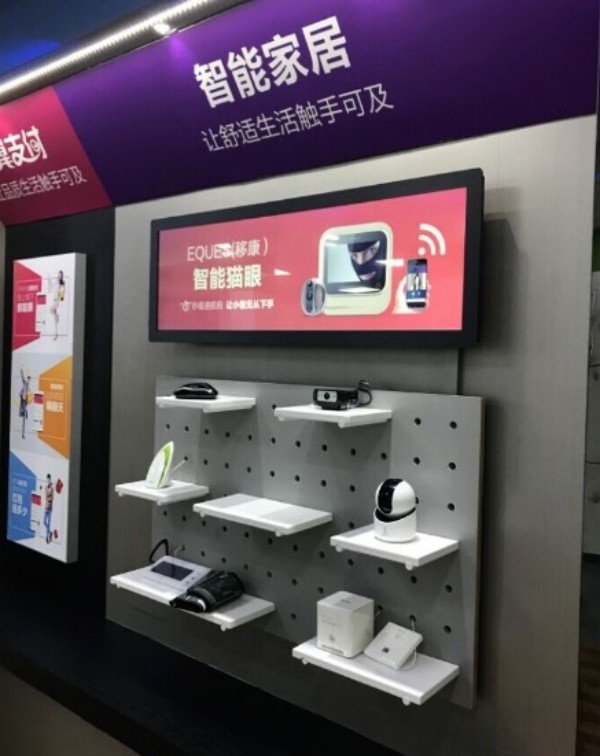

Practical Scenarios
