Industrial Control Motherboard YF.032B

Features:

◆ High Integration. Integrates EDP/HDMI-OUT/USB/Gigabit Ethernet/WIFI/BT5.4/microphone and other functions, simplifying the overall design and making it more aesthetically pleasing.

◆ High-definition 4K 60fps video decoding and supports various MIPI/LVDS/eDP/HDMI and LCD displays.

◆ Built-in Amplifier. Supports dual-channel 8R/5W amplifiers.

◆ Rich Interfaces. Supports USB/serial/GPIO/ADC interface expansion, meeting the needs of mainstream peripherals on the market.

◆ Full-featured. Supports landscape and portrait playback, video splitting, scrolling subtitles, timed on/off, USB data import, and other functions.

◆ Convenient Management: User-friendly playlist creation software facilitates advertising playback management and control. Playback logs provide easy access to playback information.

Add To Cart Inquiry

Product Details

The YF-032B-V1.0 board uses a Rockchip RK3576 octa-core 64-bit CPU with a big.LITTLE architecture (4xA72 + 4Xa53) and a high clock speed of up to 2.2GHz. It runs on Android 14.0 and features a built-in 6TOPS AI accelerator NPU supporting mixed operations such as INT4/INT8/INT16 and 4K 60fps decoding. It integrates multiple LCD drivers (MIPI, LVDS, eDP), dual Gigabit Ethernet, HDMI-OUT, WIFI, and a BT5.4 power amplifier, supporting decoding of most popular video and image formats. It has wide application support.

In computer vision: it can be used for image recognition, object detection, and face recognition. In security monitoring, it can quickly and accurately identify people, vehicles, and other targets; in autonomous driving, it can perform real-time perception and analysis of the road environment; in medical image analysis, it helps doctors diagnose diseases more accurately.

In natural language processing: it can accelerate text classification, sentiment analysis, machine translation, and other tasks, greatly improving the efficiency of processing large-scale text data.

Specifications

Key hardware specifications
CPU	Rockchip RK3576 Up to 2.2 GHz ;
GPU	ARM Mali-G52 MC3 GPU
NPU	6 TOPS
Memory	4G / 8G / 16G LPDDR5 Label 4G
Built-in memory	EMMC 32G/64/128/256G (optional) Label 64G
Decoding resolution	4K@60fps H.265/H.264/AV1/VP9/AVS2 Decoding and 4K@30fps H.264/H.265 coding
operating system	Android 14.0/Debian 12
Playback mode	Supports multiple playback modes such as loop, timed playback, and interstitial playback.
Network support	Gigabit Ethernet, supports WiFi/BT5.4 , and wireless peripheral expansion.
built-in USB	4 built-in USB pin headers
4G Module	PCIe module/CAT1 built-in
External USB	2 standard dual-layer USB ports Interface (USB 3.0, USB 2.0 or Ethernet selectable),
Ethernet	Two ports, one with 1000M Ethernet and one with USB 2.0 (selectable). Default Ethernet
HDMI-OUT	UP to 3840*2160 @ 60Hz
MIPI-DSI	UP to 4K (3840×2160) @ 60 Hz
LVDS	UP to 1920*1080
eDP	Up to 3840*2160 @ 60Hz
Audio output	Left and right channel output 8R/5W speakers
RTC Real-Time Clock	support
Hardware watchdog	support
Timed on/off	support
DI/DO	24V Control 2 DI channels, 2 channels D0
serial port	1 CAN channel, 2 RS485/RS232 channels (optional), 2 RS232 channels (TTL optional), 2One TTL, one Debug.

Industrial Control Motherboard YF.032B

TXHCI PRODUCT

TXHCI PRODUCT

Industrial Control Motherboard YF.032B

Features:

Product Details

Specifications

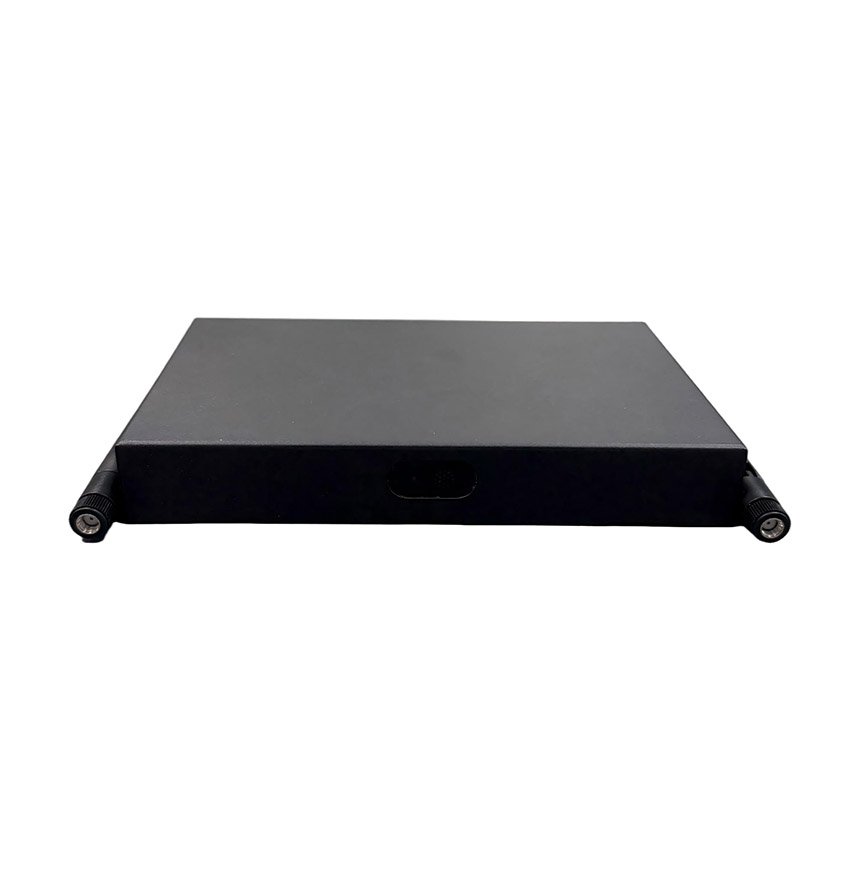

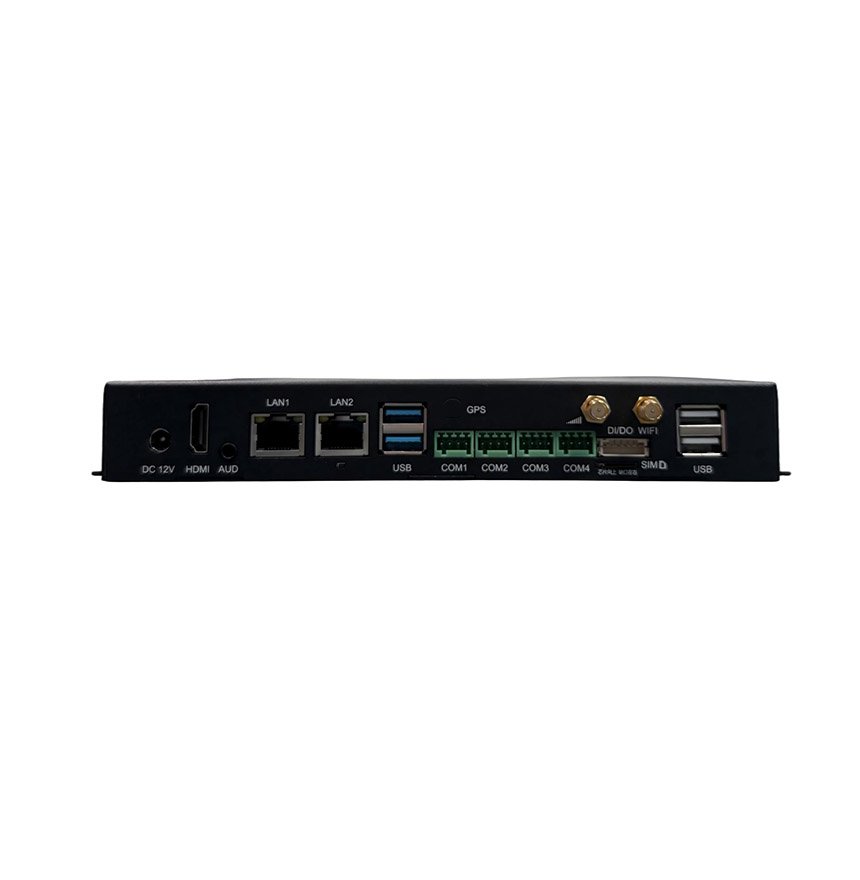

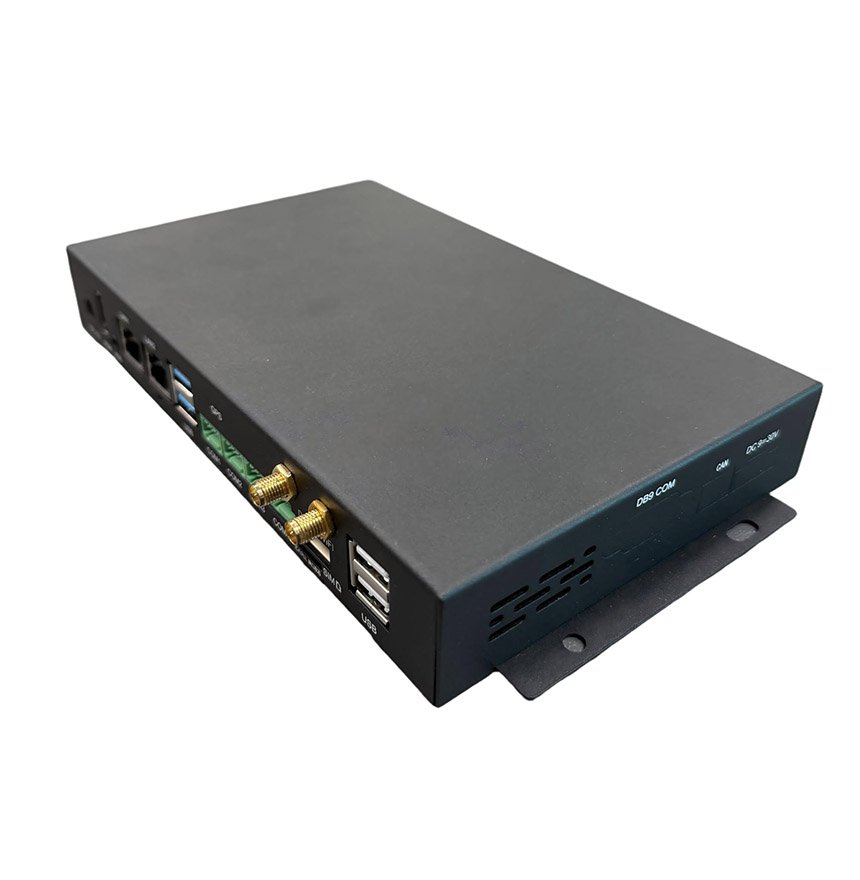

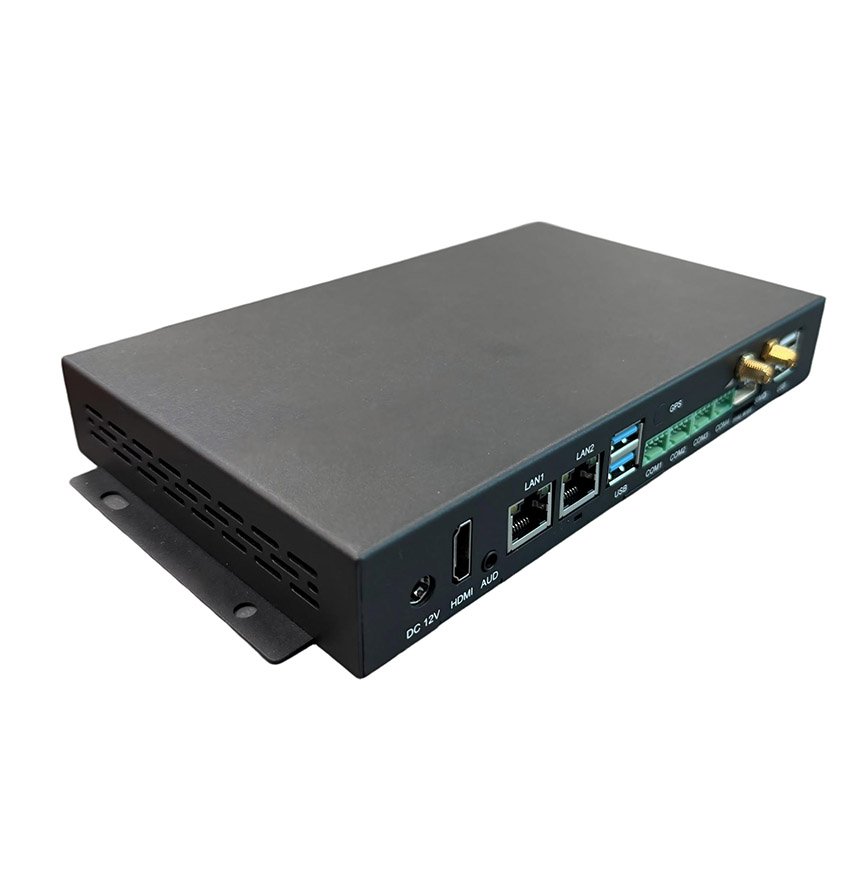

Product Appearance

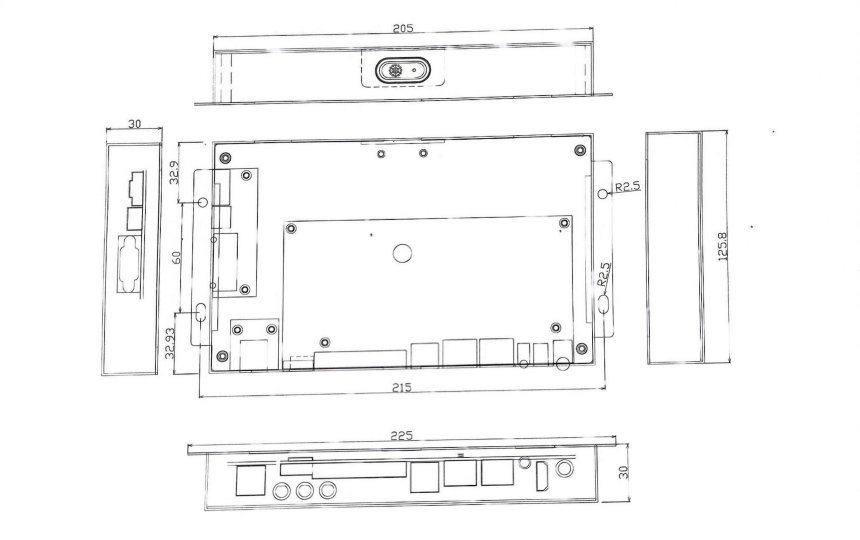

Product Dimensions
