ECU1000

Features:

Industrial-grade design to meet the needs of industrial and power users
Industrial-grade chip design, deeply customized Linux OS, ensuring system stability and reliability
Fanless design for durability
Embedded hardware and software watchdog technology for self-recovery from faults, ensuring stable equipment operation
Supports multiple industrial interfaces: 4G/ETH/RS485/CAN/DI/DO/USB
Millisecond response mechanism for second-level acquisition of large variables

Add To Cart Inquiry

Product Details

ECU 1000 This is a highly integrated energy storage EMS communication management unit designed specifically for the energy storage industry. It features a high-performance, low-power main control chip and rich functional interfaces for the power industry, widely meeting the needs of power sources. Applications such as cloud-edge-device energy management in integrated grid-load-storage microgrid energy storage systems.

ECU1000 product is equipped with a quad-core Cortex-A5 55 2.0GHz processor. Processor. Supports 5× RS485 , 8x DL , 6x DO , 2× CAN , 2x Eth, 4G WIFI , SSD , HDMI , etc., high performance. Large size and rich interface options. The ECU1000 series products support Linux and Ubuntu 20.04 . The operating system supports secondary development and can be customized to meet the user's specific business needs, reflecting customer satisfaction. It has user value and can meet the needs of power storage and industrial application scenarios.

Specifications

ECU1000 Configuration Table
Major Categories	type Details		parameter
Product Solution	Software and hardware platform	Main control chip parameters	ECU1000
		Main control chip parameters	4 CoreTX-A55 processors, maximum clock speed 2.0GHz
		Memory size type	DDR: 4GB
		Flash memory size type	EMMC: 32GB
		operating system	Ubuntu 20.4
	network	net mouth	Two-way 11000M/1100M adaptive connections (independent IP , different network segments)
		4G	CAT4/CAT1 compatible
		WIFI	either 4G or Wi-Fi .
	DIO	DI	8-channel dry node input
	DIO	DO	6-channel relay output 5A 30Vdc
	CAN	CAN	2-channel CAN 2.0 1500V electrical isolation
	RS485	RS485	5-channel 1500V electrical isolation, default baud rate 9600
	RTC	RTC	Built-in real-time clock
	USB	USB	2 USB 2.0-HOST
	TF	TF	1 channel 512 GB Max
	M.2	SSD	1-way mSATA/M.2 compatible with 1TB Max
	show	HDMI	HD 1920*1080
	Hard drive interface	M.2	Supports SSD expansion up to 1TB
	Power failure protection	Supercapacitor	1 route 5 seconds
	Watchdog	Watchdog	support
	power supply	DC	24V input power supply, operating range 12V~30V/1A
other	Power consumption		≤15W
	Operating temperature	scope	-25℃ to 75℃
	Storage temperature	scope	-40℃ to 80℃
	Operating humidity		5%~95%

ECU1000

TXHCI PRODUCT

TXHCI PRODUCT

ECU1000

Features:

Product Details

Specifications

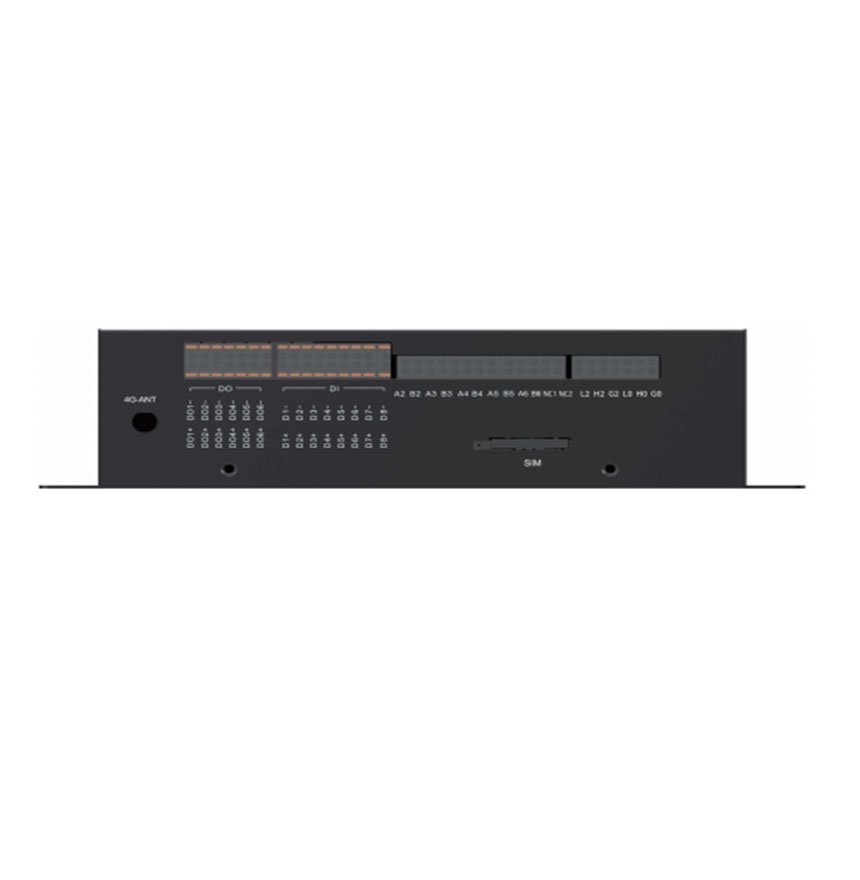

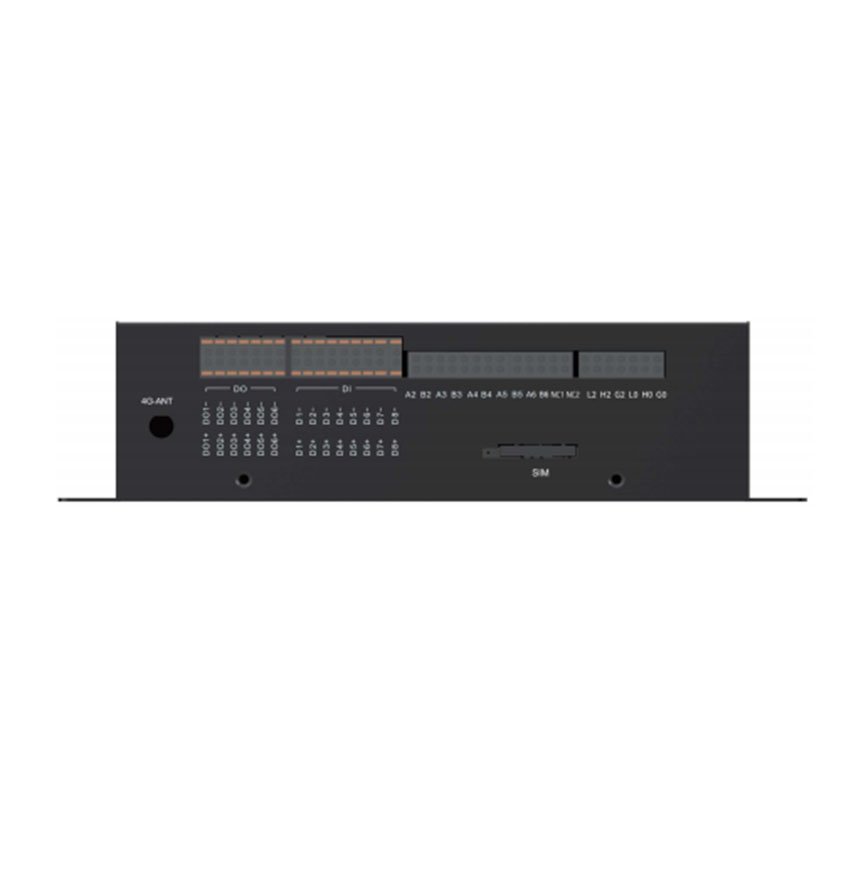

Product Appearance

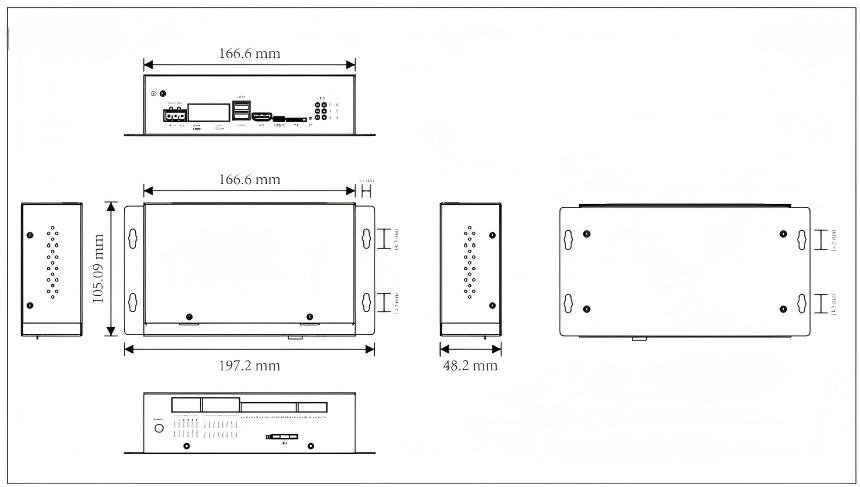

Product Dimensions
