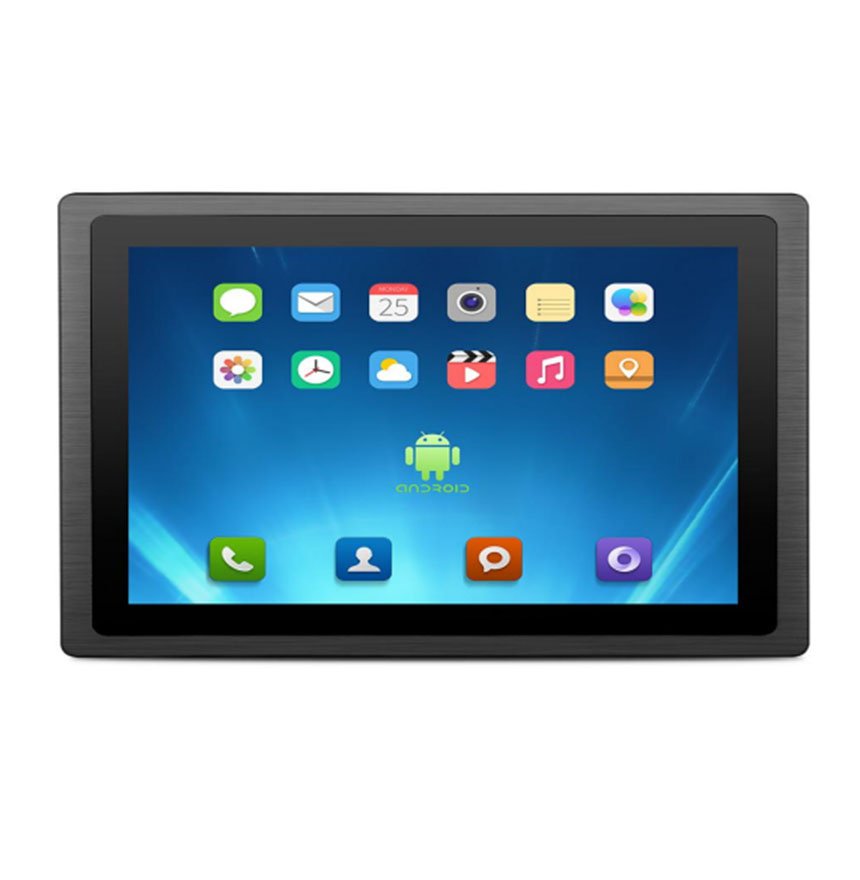

7-inch Android all-in-one Embedded

PRODUCT CATALOG

TXHCI PRODUCT

HMI panels, Android all-in-one terminals, industrial monitors, and more — designed for intelligent connectivity.

system	Main control chip	RK3566 Quad-core 64-bit Cortex-A53, 2.0GHz
	DDR	2GB (Standard configuration) 4G (Optional)
	EMMC	16GB (standard) 32GB (optional)
	NPU	1T
	operating system	Android 11.0
show	Display size	7" High-Definition LED Screen
	resolution	1024*600

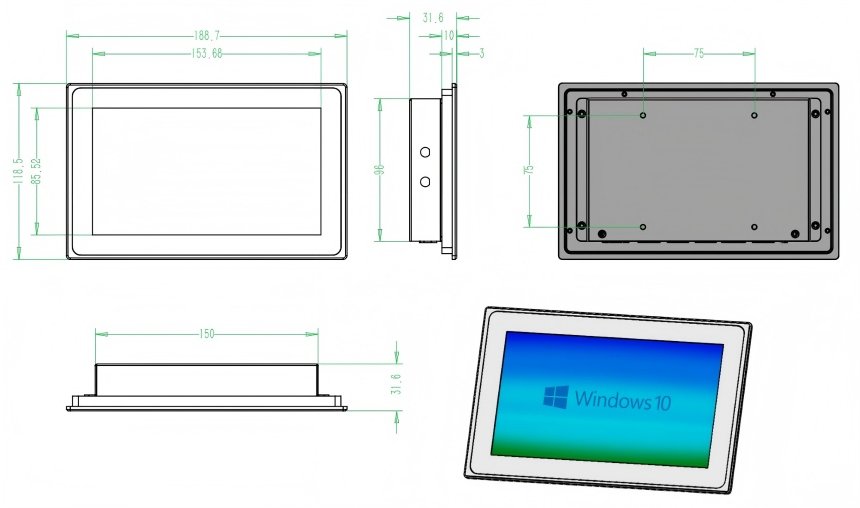

	Display area	246 (H) x 184.5 mm (V)
	Display mode	Often black,
	Display View	85/85/85/85
	Touch mode	Multi-point capacitive touch
	brightness	300cd/m2
	Display ratio	16:9
network	WIFI Bluetooth	WiFi 6/ BT 5.0 combo
network	Ethernet	RJ45, 100M/1000M

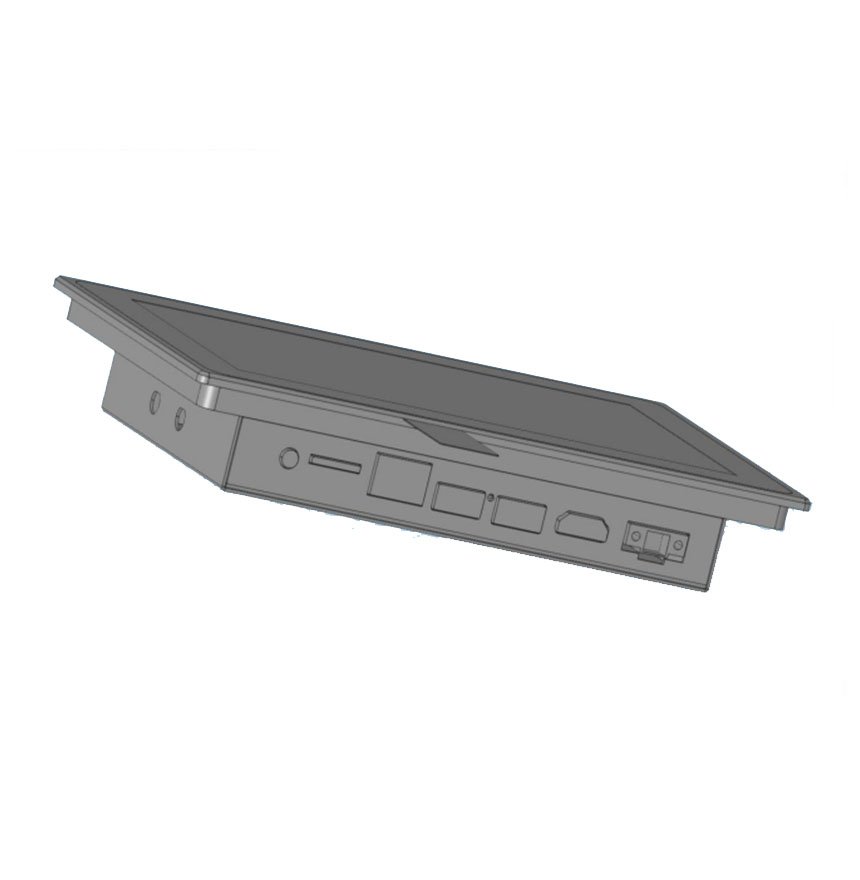

interface	USB	Route 6 Includes 1 USB 3.0 port.
	HDMI	One channel supports 4K output.
	Audio output	Left and right channel output 8R/3W speakers
	TF card expansion	Supports 128GB expansion
Media Playback	Video format	MPEG -1, MPEG -2, MPEG -4, H.263, H.264, VC 1, RV etc. , 4 K x 2K (H.264)
	Decoding resolution	Supports 1080P/H.264 (4K2K)
	Playback mode	Supports looping, timed playback, and interruption.
Usage Environment	Power input	12-24V
	temperature	-20-70
	humidity	0-80%
	language	Chinese, English, Japan, Russia, Australia, etc.
Serial communication	RS232	Route 2
	RS485	Route 2
	DEBUG	Route 1
	Hardware watchdog	support
	Timed on/off	support
