TX818

Features:

Add To Cart Inquiry

Product Details

RK3566 64 -bit quad-core 1T computing power Maximum clock speed 1.8GHz

System: Android 10.0/Android 11.0
8- inch IPS display, 800*1280/1200*1920 resolution optional.
10000mAh rechargeable polymer battery, DC power Type-C charging , with charging indicator light
The front-facing camera is 5MP , and the rear camera is 13MP . It features autofocus and dual flash with both warm and cool lighting.
The COF touchscreen uses the Goodix GT9110 touch IC and can be fitted with Corning glass

Specifications

Company Protection
Overall dimensions	28418325mm
Total weight	890g
Body color	Black, white
power adapter	Input: AC100-240V, 50-60Hz; Output: DC 5V 2A
Display screen	8-inch 8001280 (19201200 optional) high-definition IPS screen
Waterproof rating	IP65
sensor	Gravity sensor, orientation sensor, accelerometer, gyroscope, geomagnetic sensor, compass (optional)
GPS	Optional.
Memory	4G, supports up to 6G
store	32GB (64GB and 128GB options available)
Storage expansion	Supports up to 512GB SD/TF card expansion.
WiFi	Supports 2.4G+5G dual-band WIFI 802.11a/b/g/n/ac
Bluetooth	Supports Bluetooth 5.0
FM	support
Speaker microphone	Supports 0.8W dual speakers and dual microphone noise cancellation.
Grid system
NFC	ST21NFC module, 13.56M ISO/IEC14443 TYPE A/B ISO/IEC15693
Second-generation ID card module	Supports offline ID card module for black boxes, and supports optional online ID card module.
fingerprint module	Supports optional FAP10 capacitive fingerprint sensor and FAP20/FAP30 optical fingerprint sensor (slim2/slim3).
QR code scanning	Supports rear-facing 2D scanning; optional scanning modules include Newland N1.32963596, Honey N3680, and Zebra 4710; can recognize passport front codes.
RFID UHF	Optional 125K/134.2K low-frequency module, optional 840-960MHZ ultra-high module (1-3 meters)
Binocular camera	Optional 720p binocular camera for liveness detection
Iris recognition	Supports TCL301 iris recognition module
CORA IoT	Supports EO6 E22 LORA IoT modules
wired network	Supports built-in RJ45 network port
Internal Interface	USB x3
	RS422x1
	GPIOx3
	SPlx1
	2D scanning head FPCx1
Package	Tablet x1
	5V2A charger x1
	Instruction manual x1
	Data cable x1
Packaging size	Color box dimensions: 39021550mm
	Single unit packaging weight: 890g
	Outer box dimensions: 410280415mm
	Gross weight: 12.5kg
External Interface	DC 3.5mm charging port x1
	Type x1
	Reset hole x1
	Choose two from SIM/TF x1
	USB-Ax1
	RJ45 network port x1 (PoE power supply or battery-free power supply optional)
	Microphones x2
	RS232 interface x1

TX818

TXHCI PRODUCT

TXHCI PRODUCT

TX818

Features:

Product Details

RK3566 64 -bit quad-core 1T computing power Maximum clock speed 1.8GHz

Specifications

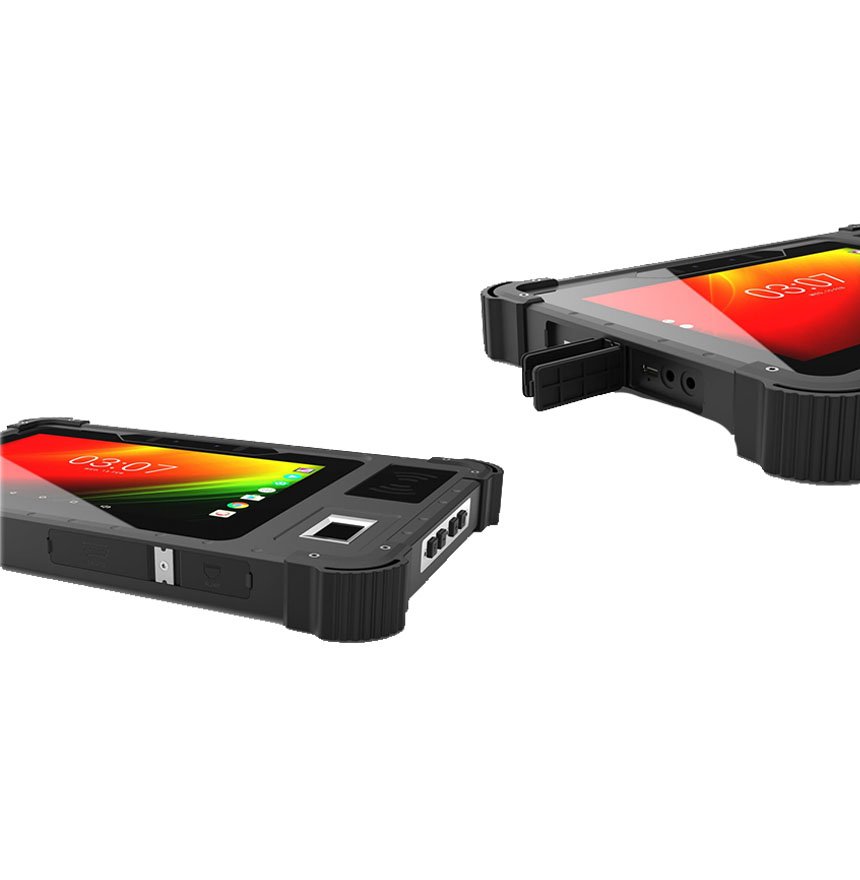

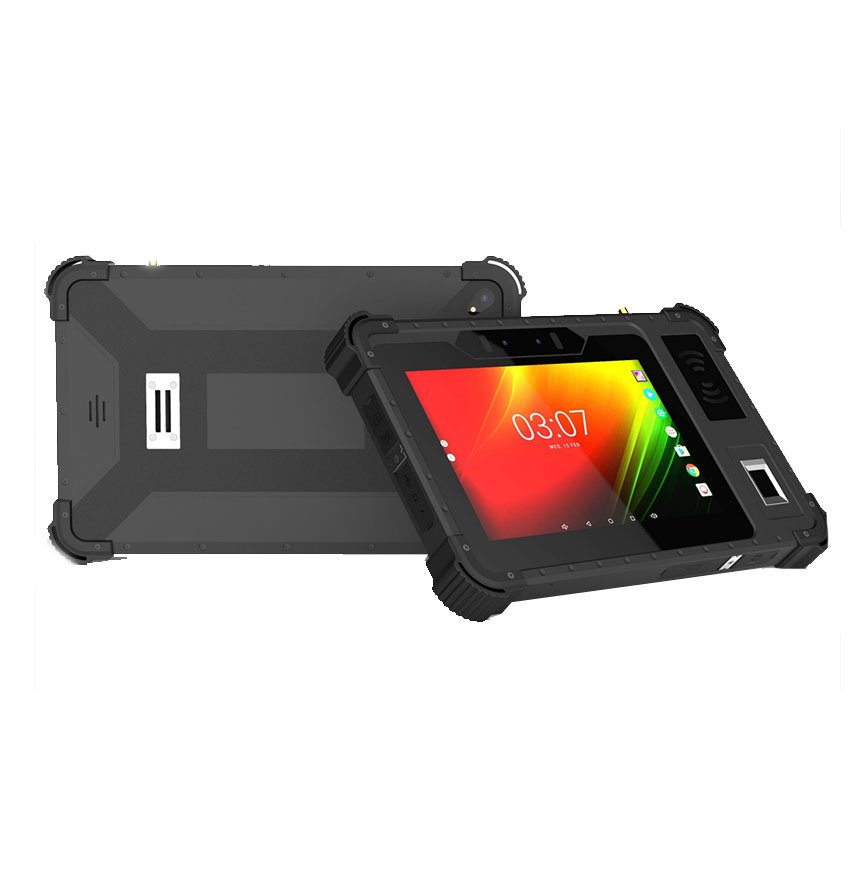

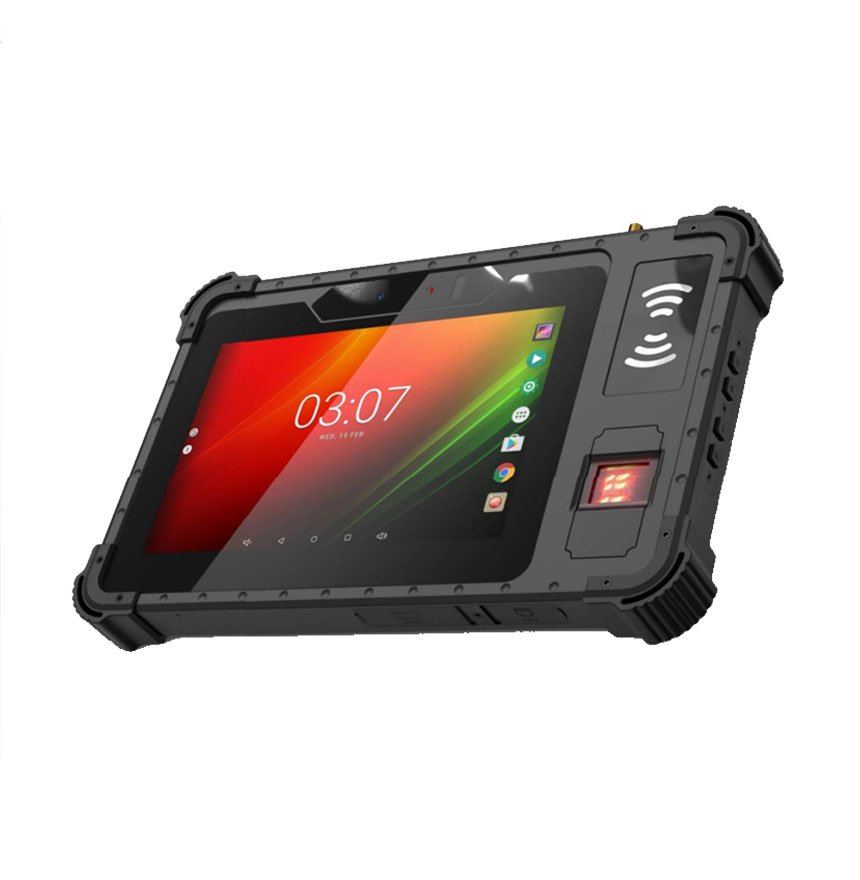

Product Appearance

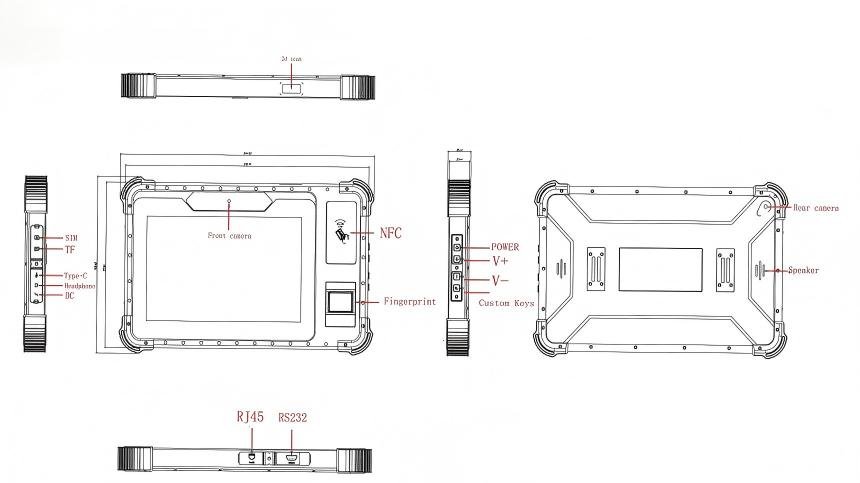

Product Dimensions
