10.1-inch Android All-in-One PC

PRODUCT CATALOG

TXHCI PRODUCT

HMI panels, Android all-in-one terminals, industrial monitors, and more — designed for intelligent connectivity.

10.1-inch Android All-in-One PC

Features:

Add To Cart Inquiry

Specifications

model		TX-101R328		unit price	prototype	50-500pcs	1-3k	3-5K	+5K
trademark		TXHCI
Product Type		Android Touch		Delivery cycle
Product Description		10.1" Android Touchscreen All-in-One PC		Minimum order
date		2022/6/14		Warranty period	One year

system	CPU		RK3566, quad-core 64- bit, with a maximum clock speed of 2.0GHz.
	RAM		2GB
	Memory		16 GB
	operating system		Android 1 1 .0
	touchscreen		Multi-point capacitive fully laminated touch
show	led screen		10.1" High-Definition LED Screen
	resolution		1280x800
	Visible area		216.96(H) X 135.96(V)
	Display mode		Tokiguro
	Viewing angle		85/85/85/85
	Contrast		1000:01:00
	brightness		350cd/m2 (Customizable)
	screen ratio		16:10
network	wireless network		Supports WIFI-2.4G BT-4.0
	Ethernet		10M/100M Adaptive Ethernet
interface	Insert card		TF card slot
	USB1		USB host
	USB2		USB OTG
	HDMI		HDMI output 4K*2K/60fps high-definition video
	RJ45		Ethernet port
	serial port		3 / 2 TTL Level serial port , One debug serial port (optional)
	earphone		3.5mm stereo headphone output
	Power interface		12V-24V/12MM GX12 2 core Male head (optional)
	Power interface		12V-24V wide voltage /DC 5.5*2.1 MM
Media Playback	Video format		Supports H.265/VP9 10 -bit , H.264 , and AVS+ are just some of the many formats available. HDR10 and HLG high dynamic range processing, full HD 1080p 60fps hardware encoding
	audio format		Supports left and right channels, MIC interface
	Image format		Supports BMP, JPEG, PNG, GIF , etc.
other	trumpet		8Ω 3W
	Operating temperature		at -20°C to +60°C for two hours at a high temperature of 60 °C, and then at -20 °C for two hours at a low temperature. The high and low temperatures were alternated for five cycles.
	Power consumption		7W
	Certification		FCC
	OSD Language		OSD operation in multiple languages including Chinese and English
appendix	Instruction Manual		Standard configuration
	screw		PWM 4 * 6MM * 4PCS Optional
	Phoenix plug		KF2EDGWB-3.5/3.81-2 Female connector optional
	aviation plug		12MM GX12 2 core Female head selection

10.1-inch Android All-in-One PC

TXHCI PRODUCT

TXHCI PRODUCT

10.1-inch Android All-in-One PC

Features:

Specifications

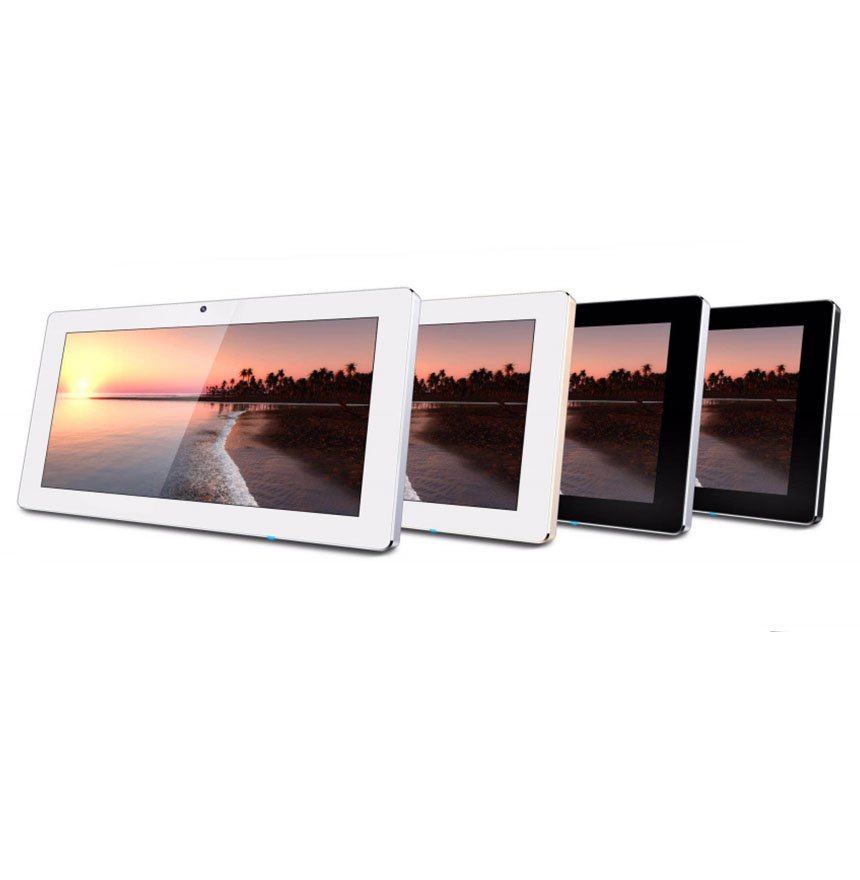

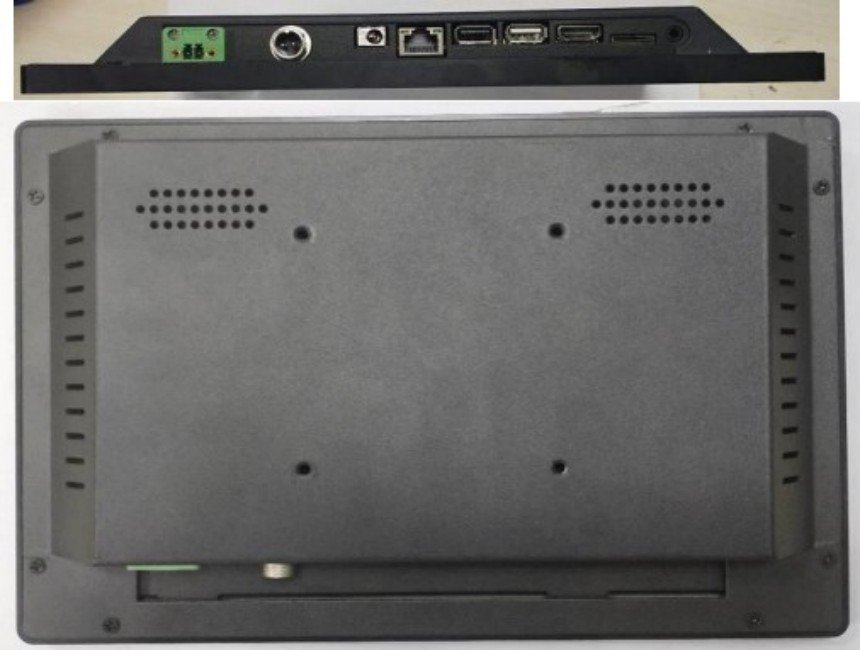

Product Appearance

Product Dimensions
