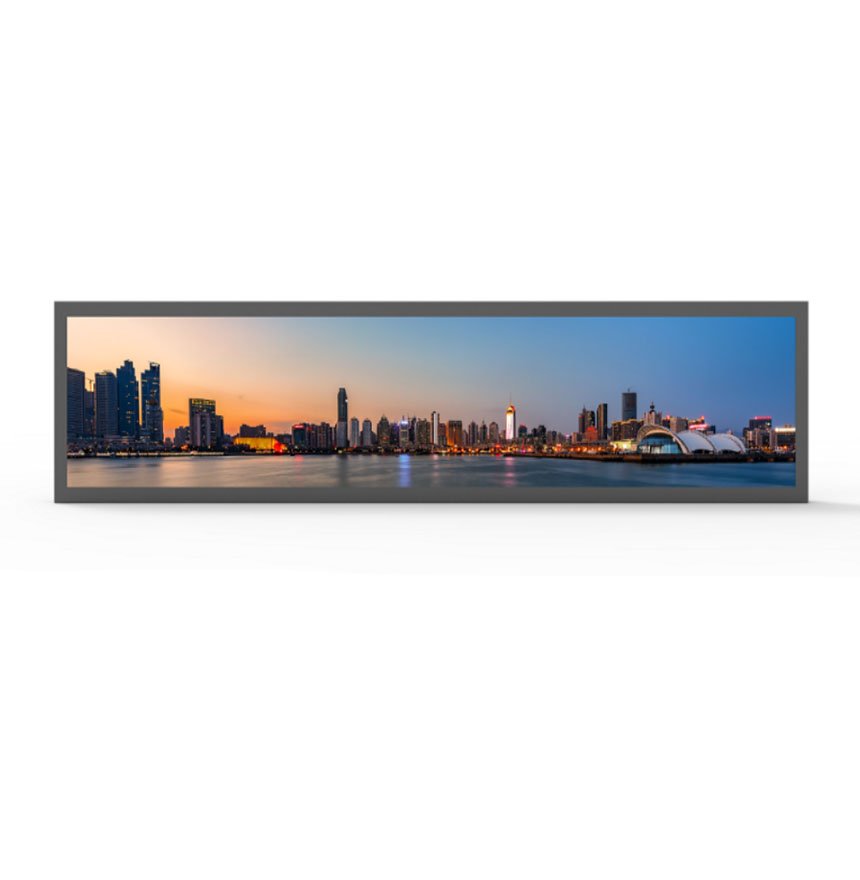

164C Long Strip All-in-One PC ZLS-Monitor

Scope of application

(Scope of application)

Advertising Display

OSD LANGUAGE

(OSD language)

Chinese, English

PANEL (panel)

Panel Type

(Panel type)

led

Interface

(interface)

LVDS

MAX Resolution

(Maximum resolution)

1920*1080

Interface of controlling

(Control interface)

NA

Video input

HDMI

480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4Kx2K

AUDIO OUTPUT

(Audio output)

Max Output power

(Maximum output power)

2×8W(8Ω) THD+N<10%@1KHz

(Power Supply: 12V, Audio Input: 0.5VRMS)

POWER (Power Supply)

Requirement

(Power input)

12V 5A

To Panel

(Power supply to the screen)

5V

Management

(Power Management)

Low power consumption mode, standby < 0.5W(Onlyboard)

Specialized power consumption < 1W (motherboard only)

Comb filtering function

3D

Deinterleaving function

3D

Noise cancellation function

YES

USB FUNCTION

Multimedia, software upgrade

Refer to 7.1 for details.

Special features

Supports switching of strip screen resolution via USB, supports HDMI peer-to-peer, and supports OSD.
