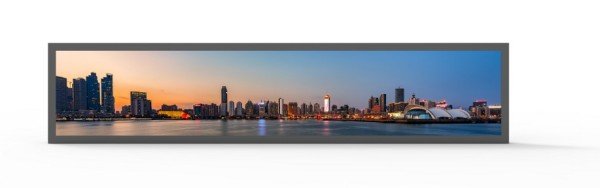

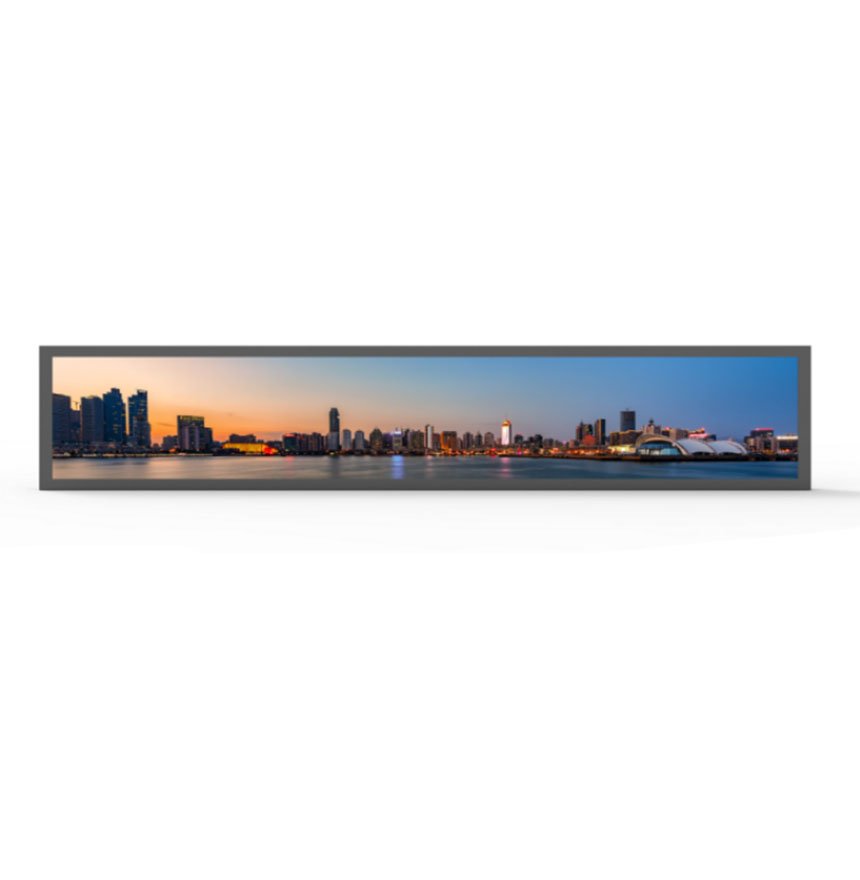

191C Long Strip ZLS-Display

Features:

Multiple specifications available, customizable, LED LCD screen, high-definition display

Add To Cart Inquiry

Product Details

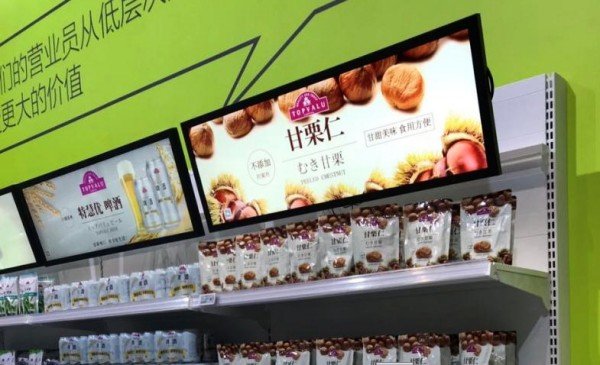

The 191C long strip screen is a new generation of advertising display screen, featuring high-definition display and operation applications. It utilizes a multimedia LCD driver board with a mature solution and stable hardware and software. It supports LVDS dot-matrix display and HDMI high-definition output, contributing to excellent image quality at high resolutions and providing a visually pleasing experience. It features a standard Android keyboard with optional third-party input methods, supports multiple languages, and perfectly complements mainstream industry software . Widely used in the advertising industry , it is the preferred display device for door signs, equipment and instrument displays, elevator advertisements, queue number displays, restaurant menus, and directional signage for government agencies, banks, and other public institutions!

Overall Functionality

CHIPSET

(Main chip)

TSUMV56RUUL

Scope of application

(Scope of application)

Advertising Display

OSD LANGUAGE

(OSD language)

Chinese, English

PANEL (panel)

Panel Type

(Panel type)

led

Interface

(interface)

LVDS

MAX Resolution

(Maximum resolution)

1920*1080

Interface of controlling

(Control interface)

Video input

HDMI

480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4Kx2K

AUDIO OUTPUT

(Audio output)

Max Output power

(Maximum output power)

2×8W(8Ω) THD+N<10%@1KHz

(Power Supply: 12V, Audio Input: 0.5VRMS)

POWER (Power Supply)

Requirement

(Power input)

12V 5A

To Panel

(Power supply to the screen)

Management

(Power Management)

Low power consumption mode, standby < 0.5W(Onlyboard)

Specialized power consumption < 1W (motherboard only)

Comb filtering function

Deinterleaving function

Noise cancellation function

YES

USB FUNCTION

Multimedia, software upgrade

Refer to 7.1 for details.

Special features

Supports switching of strip screen resolution via USB, supports HDMI peer-to-peer, and supports OSD.

Positive effect

Specifications

Overall characteristics

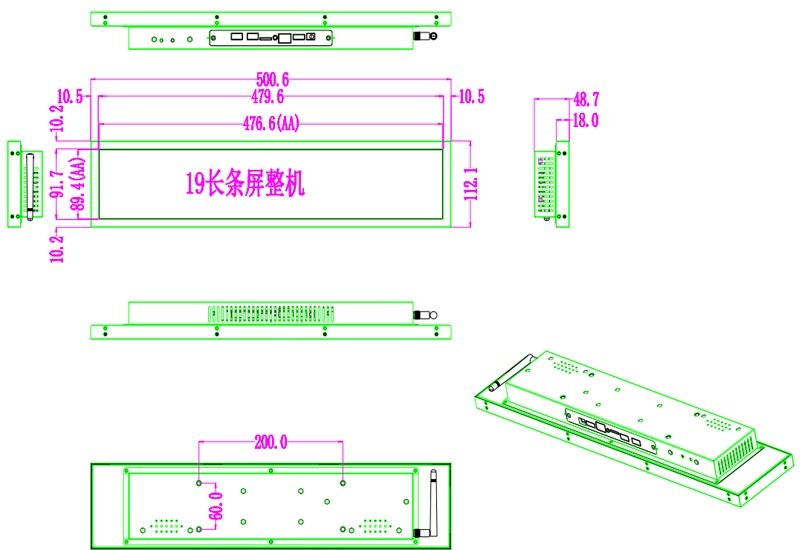

Overall dimensions	500.6112.148.7 (mm)
Display size	476*89.4mm
Video format	Supports MPEG1/2, MPEG4, SP/ASP, XVID, VP8/6, AVS/AVS+, H.264 BP/MP/HP, H.263/WMV, WMV7, WMV8, etc.
audio format	WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, MP3, etc.
Speaker specifications	8 Ω 3W Advertising Machine Speaker
Port configuration	USB 2.0 : 1 set
	AV input: 1 group
	HDMI IN : 2 sets
	DC 2.0 IN : 1 set
Maximum power consumption	≤ 28 W
standby power	≤0.5W
Input power	DC 12V
Package	1 pc/carton (Length: 578mm , Width: 165mm , Height: 187mm )
weight	Net weight: 2.2 KG Gross weight: 2.9 KG

Display parameters

Screen size	19.1 inches
Display type	LED LCD screen
Physical resolution	1920(H)×360(V)(FHD)
Display color	8- bit , 16.7M colors
refresh rate	60Hz
brightness	500-1000 cd /㎡
Contrast	1200:1
View range	89/89/89/89(U/D/L/R)
Backlight lifespan	30,000 hours
