HMI panels, Android all-in-one terminals, industrial monitors, and more — designed for intelligent connectivity.
Multiple specifications available, customizable, LED LCD screen, high-definition display

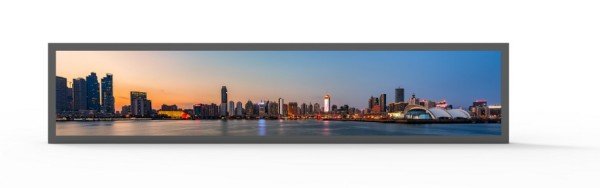

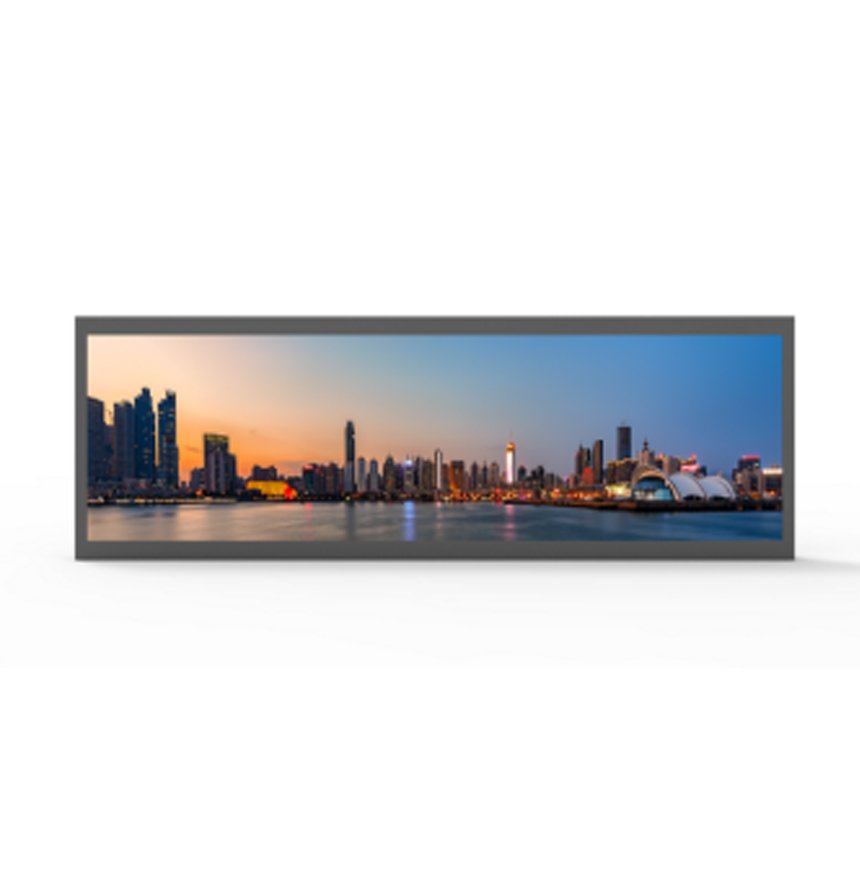

245C long strip screen is a new generation of advertising display screen with high-definition display. It uses a multimedia LCD driver board with a mature solution and stable hardware and software. It supports LVDS dot- matrix display and HDMI high-definition input, contributing to excellent image quality at high resolution and providing a pleasing visual experience. Widely used in the advertising industry , it is the preferred display equipment for door signs, equipment and instrument displays, elevator advertisements, queue number displays, taxi overhead screens, restaurant menus , and directional signs for government agencies, banks, and other public institutions !
Overall Functionality | CHIPSET (Main chip) | TSUMV56RUUL
| |
Scope of application (Scope of application) | Advertising Display
| ||
OSD LANGUAGE (OSD language) | Chinese, English
| ||
PANEL (panel)
| Panel Type (Panel type) | led
| |
Interface (interface) | LVDS
| ||
MAX Resolution (Maximum resolution) | 1920*1080
| ||
Interface of controlling (Control interface) | NA
| ||
Video input | HDMI
| 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4Kx2K | |
AUDIO OUTPUT (Audio output) | Max Output power (Maximum output power) | 2×8W(8Ω) THD+N<10%@1KHz (Power Supply: 12V, Audio Input: 0.5VRMS) | |
POWER (Power Supply)
| Requirement (Power input) | 12V 5A | |
To Panel (Power supply to the screen) | 5V | ||
Management (Power Management) | Low power consumption mode, standby < 0.5W(Onlyboard) Specialized power consumption < 1W (motherboard only) | ||
Comb filtering function | 3D | ||
Deinterleaving function | 3D | ||
Noise cancellation function | YES | ||
USB FUNCTION
| Multimedia, software upgrade Refer to 7.1 for details. | ||
Special features | Supports switching of strip screen resolution via USB, supports HDMI peer-to-peer, and supports OSD. | ||
| Positive effect |  | ||

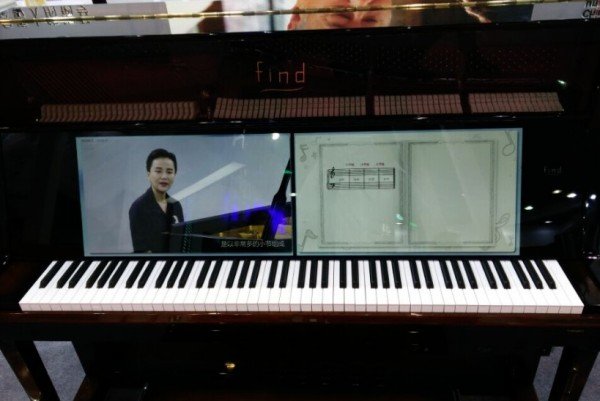

Practical Scenarios
