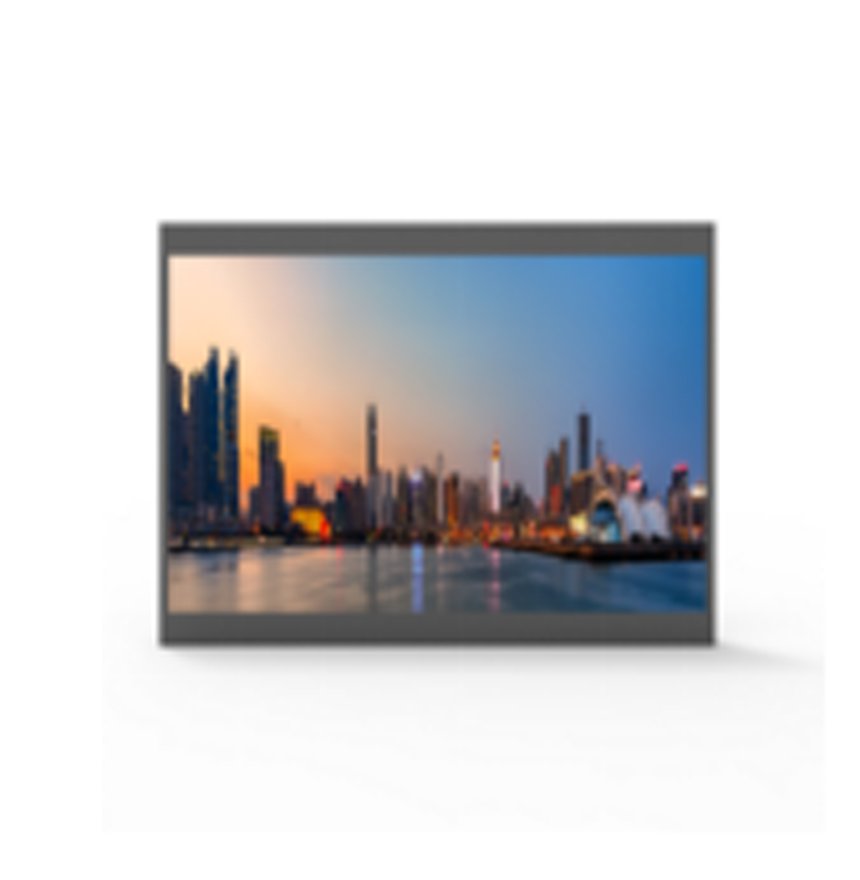

220 Square Strip All-in-One Printer ZLS-Display Board

Features:

Multiple specifications available, customizable, LED LCD screen, high-definition display

Add To Cart Inquiry

Product Details

The 220F long strip screen is a new generation of advertising display screen, featuring high-definition display and touch operation. It utilizes a multimedia LCD driver board with a mature solution and stable hardware and software. It supports LVDS dot-matrix display and HDMI high-definition output, contributing to excellent image quality at high resolutions and providing a visually pleasing experience. It features a standard Android keyboard with optional third-party input methods, supports multiple languages, and is perfectly compatible with mainstream industry software . It is the preferred display equipment for elevator advertising, queue management displays, restaurant menus , and signage in government agencies, banks, and other public institutions!

Overall Functionality

CHIPSET

(Main chip)

R8512

Scope of application

(Scope of application)

Advertising Display

OSD LANGUAGE

(OSD language)

Chinese, English

PANEL (panel)

Panel Type

(Panel type)

led

Interface

(interface)

LVDS

MAX Resolution

(Maximum resolution)

1920*1080

Interface of controlling

(Control interface)

Video input

HDMI

480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4Kx2K

AUDIO OUTPUT

(Audio output)

Max Output power

(Maximum output power)

2×5W(8Ω) THD+N<10%@1KHz

(Power Supply: 12V, Audio Input: 0.5VRMS)

POWER (Power Supply)

Requirement

(Power input)

12V 5A

To Panel

(Power supply to the screen)

12V

Management

(Power Management)

Low power consumption mode, standby < 0.5W(Onlyboard)

Specialized power consumption < 1W (motherboard only)

Comb filtering function

Deinterleaving function

Noise cancellation function

YES

USB FUNCTION

Multimedia, software upgrade

Refer to 7.1 for details.

Special features

Supports switching of strip screen resolution via USB, supports HDMI peer-to-peer, and supports OSD.

Specifications

Overall characteristics

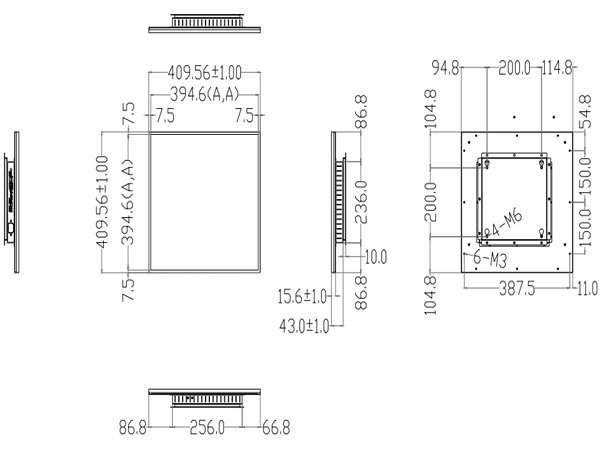

Overall dimensions	40940943 (mm)
Display size	394.6*394.6 mm
Video format	Supports MPEG1/2, MPEG4, SP/ASP, XVID, VP8/6, AVS/AVS+, H.264 BP/MP/HP, H.263/WMV, WMV7, WMV8, etc.
audio format	WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, MP3, etc.
Speaker specifications	8Ω- 10W 2040 cabinet speaker
	VGA : 1 set (square screens are not allowed)
	DPI : 1 group (square screen not available)
	Micro SD: 1 set
	DVI : 1 set
	HDMI IN : 1 set
	DC2.0 IN: 1 set
Maximum power consumption	≤ 60 W
standby power	≤0.5W
Input power	AC 100-230V
Package	1 piece/box (Length: mm , Width: mm , Height: mm )
weight	Net weight (KG) Gross weight (KG)

Display parameters

Screen size	22 inches
Display type	LED LCD screen
Physical resolution	1920 (H) × 1920 (V) (FHD)
Display color	8- bit , 16.7M colors
refresh rate	60Hz
brightness	500 cd/㎡
Contrast	1200:1
View range	89/89/89/89(U/D/L/R)
Backlight lifespan	30,000 hours
