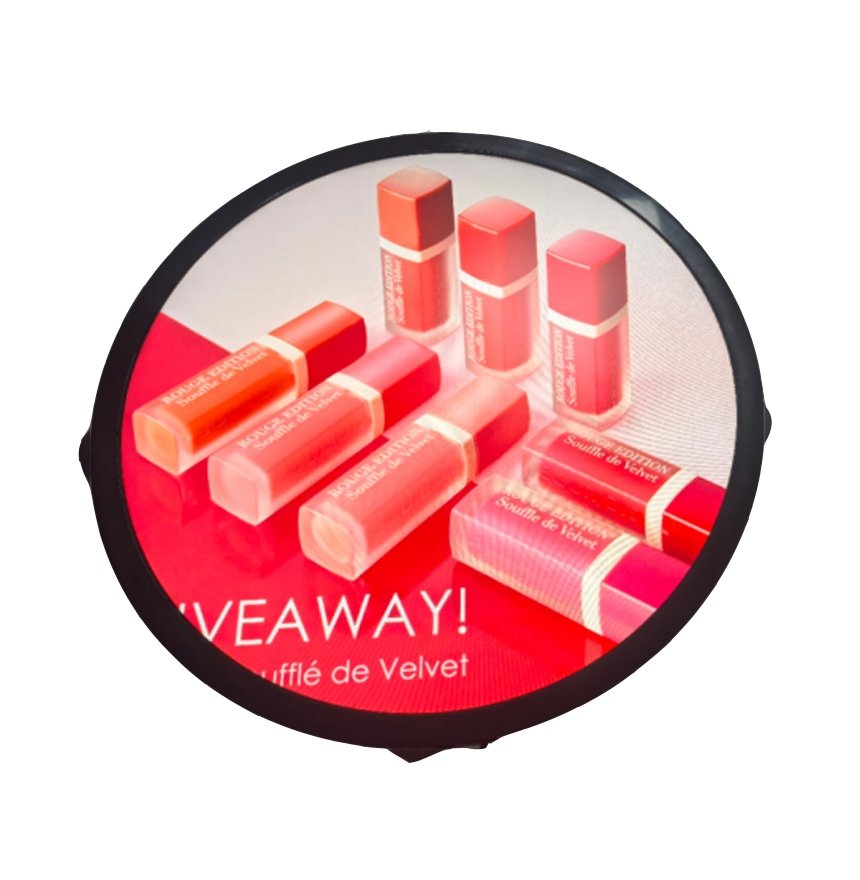

236C Round Screen All-in-One PC ZLS3288

Features:

Multiple specifications available, customizable, LED LCD screen, high-definition display

Add To Cart Inquiry

Product Details

236 round screen is a new generation of advertising display screen, featuring high-definition display and operation. It utilizes a multimedia LCD driver board with a mature solution and stable hardware and software. It supports LVDS dot-matrix display and HDMI high-definition output, contributing to excellent image quality at high resolutions and providing a visually pleasing experience. It features a standard Android keyboard with optional third-party input methods, supports multiple languages, and perfectly complements mainstream industry software . Widely used in the advertising industry , it is the preferred display device for restaurant menus, government/bank signage, and other public institution signage!

Overall Functionality

Standard Android keyboard, with optional third-party input methods.

Supports up to 1080P decoding and various LVDS signal displays; HDMI supports up to 1920*1080P/60Hz.

Built-in real-time clock powered by battery, supports timed power on/off.

Supports PAL/NTSC/SECAM and 480i/576i video formats.

Supports external serial port device modules (expanded sensors or barcode/QR code scanners, printers, card readers, etc.).

TF card expansion, supports up to 64GB

OSD supports Chinese and English languages, and can also support multiple languages.

Supports Ethernet 10/100Mbps, and 2.4G WIFI and 802.11b/g/n protocols (matching antenna required).

Perfectly supports mainstream industry-released software and industry application software; install and use immediately.

Supports browsing various image formats such as JPG, BMP, PNG, and GIF, and supports switching between portrait and landscape modes for videos, images, and text, with rotation options of 90°, 180°, and 270°.

Port configuration: USB OTG, USB HOST, RJ45, Micro SD, LINE OUT, HDMI OU, DC2.0 IN

Supports OTA remote USB, TF, PC and network upgrades

The customer is responsible for obtaining the license information specified in this specification.

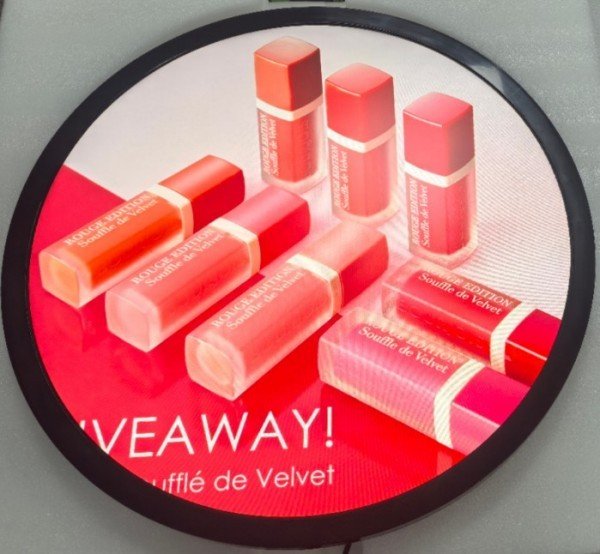

Positive effect

Specifications

Overall characteristics

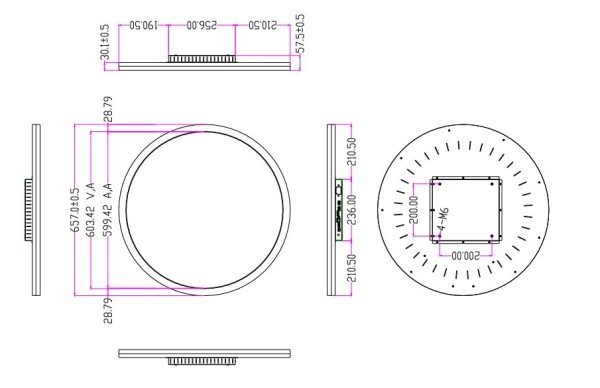

Overall dimensions	65765757.5 (mm)
Display size	599.42*599.42
Video format	Supports MPEG1/2, MPEG4, SP/ASP, XVID, VP8/6, AVS/AVS+, H.264 BP/MP/HP, H.263/WMV, WMV7, WMV8, etc.
audio format	WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, MP3, etc.
Speaker specifications	8 Ω 3W Advertising Machine Speaker
Port configuration	USB OTG: 1 set
	USB HOST: 1 set
	RJ45: 1 set
	Micro SD: 1 set
	LINE OUT: 1 set
	HDMI OUT: 1 set
	DC2.0 IN: 1 set
Communication settings	Ethernet 10/100Mbps, 2.4G WiFi, 802.11 b/g/n protocol, external antenna.
Support for information transmission	Hefeng, Dumei, Weikan, Xingji, Yixinfa, Chihua, Shanhu, and other information providers
Maximum power consumption	≤ 75 W
standby power	≤ 1 W
Input power	A C 220 V
Package	1 pc/box (Length: Width: Height:)
weight	Net weight (KG) Gross weight (KG)

System parameters

processor	Rockchip RK 3288, the most powerful quad-core processor at 1.8GHz . Cortex - A17 Quad -core GPU Mail - T764
system	Android 7.1.2
Memory	DDR3 2 G
storage space	32 GB

Display parameters

Screen size	23.6 inches
Display type	LED LCD screen
Physical resolution	1280*1280 (FHD)
Display color	8- bit , 16.7M colors
refresh rate	60Hz
brightness	500-1000 cd /㎡
Contrast	4000 :1
View range	89/89/89/89(U/D/L/R)
Backlight lifespan	30,000 hours
