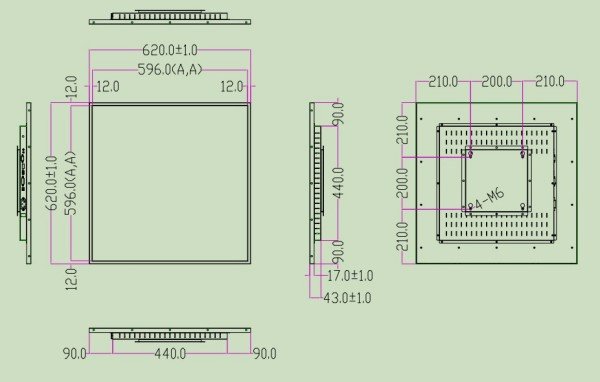

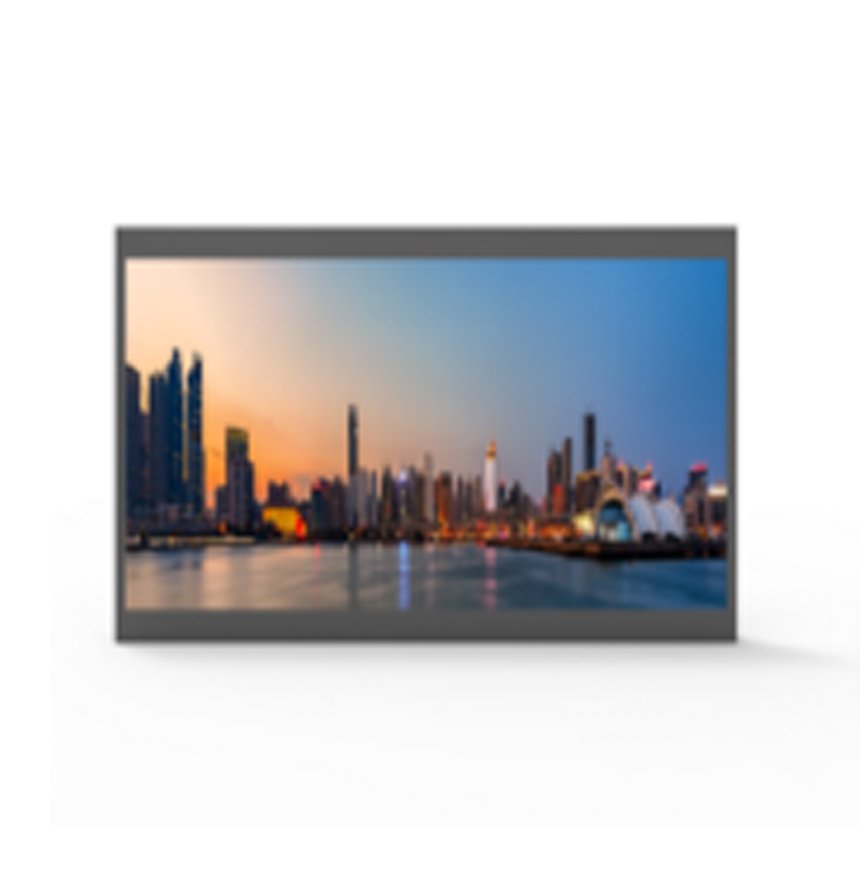

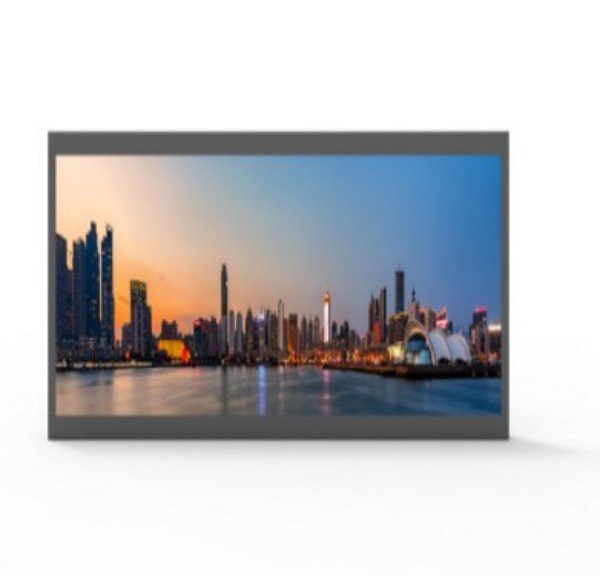

332 Square Screen All-in-One Monitor Board

Overall Functionality

² Supports up to 2160P decoding and various LVDS signal displays; HDMI supports up to 3840P /60Hz.

² It supports HDR10 high dynamic range images (High-Dynamic Range, or HDR for short), which can provide more dynamic range and image details compared to ordinary images. It uses LDR (Low-Dynamic Range) images with different exposure times to synthesize the final HDR image with the LDR image with the best details corresponding to each exposure time, which can better reflect the visual effects in the real environment.

² 2.1 The HDMI1 interface supports the HDMI 2.0 protocol, and can hardware decode signals up to 2560*1600@60HZ; it also supports HDMI-HDCP 2.0.

² 2.2 The DP interface supports DP1.1 and DP1.2 protocols. DP1.2 supports hardware decoding of 2560*1600@60Hz signals.

² 2.3 The screen supports 180-degree rotation.

² 2.4 The on-screen menu is user-friendly and allows control over all supported functions.

² 2.5 Automatically adapts to screen brightness and contrast control.

² 2.6 Color balance and color temperature control,
