598 Square Screen All-in-One PC ZLS-3568

Features:

Add To Cart Inquiry

Product Details

598F square screen is a new generation of advertising display screen, featuring high-definition display and touch operation. It utilizes a multimedia LCD driver board with a mature solution and stable hardware and software. It supports V-By-one dot-matrix display and HDMI high-definition input , contributing to excellent image quality at high resolutions and providing a visually pleasing experience. It features a standard Android keyboard with optional third-party input methods, supports multiple languages, and perfectly complements mainstream industry software . Widely used in the advertising industry, it is the preferred display equipment for advertising display screens, intelligent self-service terminals, O2O smart devices, bus/subway vehicle announcement systems, and government/commercial signage!

Overall Functionality

Standard Android keyboard, with optional third-party input methods.

Supports up to 3840P decoding and various LVDS signal displays; HDMI supports up to 3840*2160P /60Hz.

Built-in real-time clock powered by battery, supports timed power on/off.

Supports PAL/NTSC/SECAM and 480i/576i video formats.

Supports external serial port device modules (expanded sensors or barcode/QR code scanners, printers, card readers, etc.).

TF card expansion, supports up to 64GB

OSD supports Chinese and English languages, and can also support multiple languages.

Supports Ethernet 10/100Mbps, and supports 2.4G WIFI and 802.11b/g/n protocols.

²Perfectly supports mainstream industry-released software and industry application software; install and use immediately.

Supports browsing various image formats such as JPG, BMP, PNG, and GIF, and supports switching between portrait and landscape modes for videos, images, and text, with rotation options of 90°, 180°, and 270°.

²Port configuration: USB OTG, USB HOST, RJ45, Micro SD, LINE OUT, HDMI IN .

Supports OTA remote USB, TF, PC and network upgrades

The customer is responsible for obtaining the license details specified in this specification.

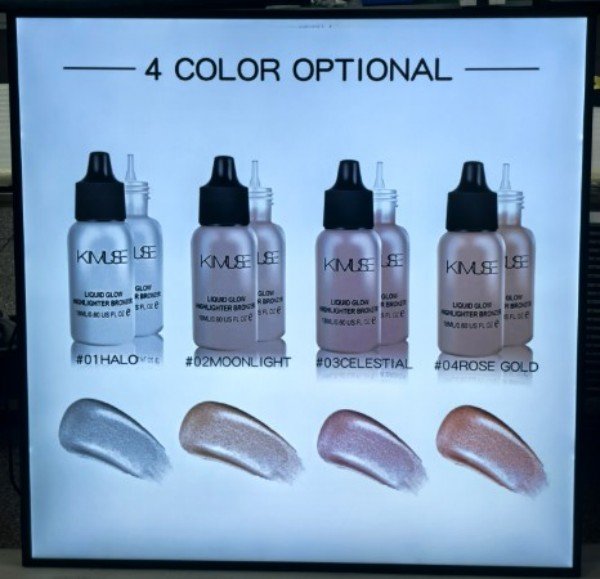

Front view

Specifications

Overall characteristics

Overall dimensions	1104110447 (mm)
Display size	1069*1069 mm
Video format	Supports MPEG1/2, MPEG4, SP/ASP, XVID, VP8/6, AVS/AVS+, H.264 BP/MP/HP, H.263/WMV, WMV7, WMV8, etc.
audio format	WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, MP3, etc.
Speaker specifications	8Ω - 10W
Port configuration	USB OTG: Group 1
	USB HOST: 1 set
	TF : 1 group
	AUDIO : 1 set
	JAN : Group 1
	HDMI IN : 1 set
	DC2.0 IN: 1 set
Communication settings	Ethernet 10/100Mbps, 2.4G WiFi, 802.11 b/g/n protocol, external antenna.
Support for information transmission	Xiaohui Cloud (free), third-party software requires testing.
Maximum power consumption	≤ 20 0 W
standby power	≤ 1 W
Input power	AC 100-- 2 3 0V
Package
weight

System parameters

processor	RK3568, quad-core, with a maximum clock speed of 2.0GHz.
system	Android 11
Memory	DDR3 2 G
storage space	32GB

Display parameters

Screen size	59.8 inches
Display type	LED LCD screen
Physical resolution	1900*1900 (FHD)
Display color	8- bit , 16.7M colors
refresh rate	60Hz
brightness	500 cd/㎡
Contrast	1200:1
View range	89/89/89/89(U/D/L/R)
Backlight lifespan	30,000 hours
Surface morphology	With tempered glass

598 Square Screen All-in-One PC ZLS-3568

TXHCI PRODUCT

TXHCI PRODUCT

598 Square Screen All-in-One PC ZLS-3568

Features:

Product Details

Specifications

Product Appearance

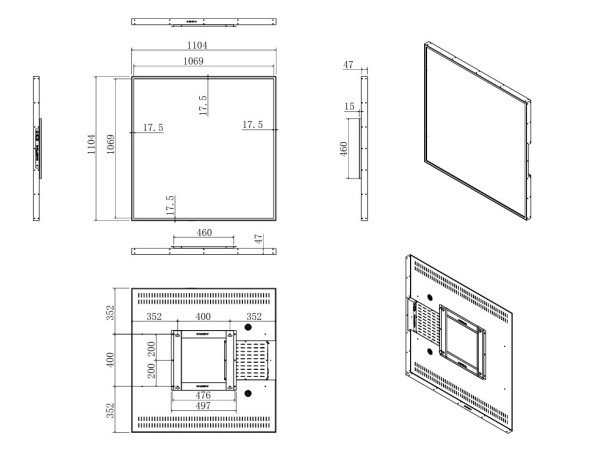

Product Dimensions
